ALP FLIGHT CASES for Yamaha DM5 Compact Serie III

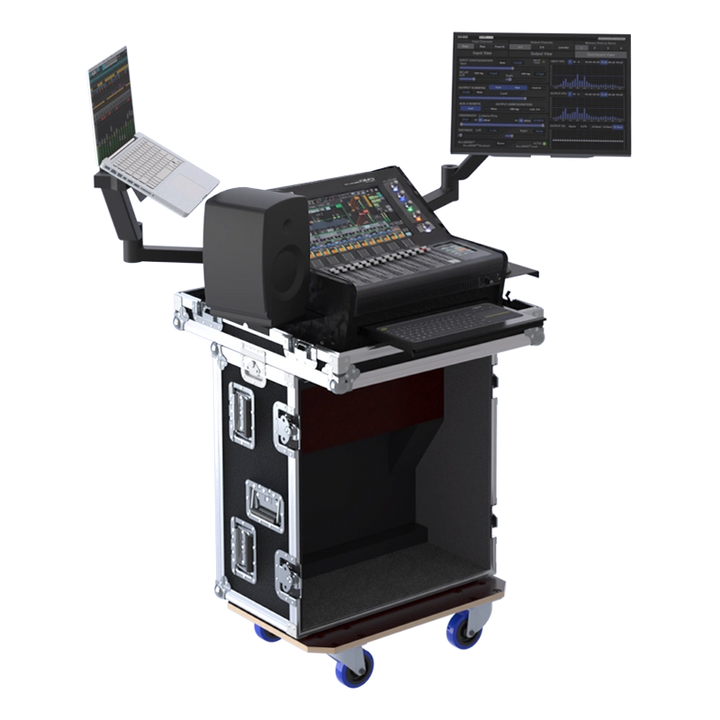

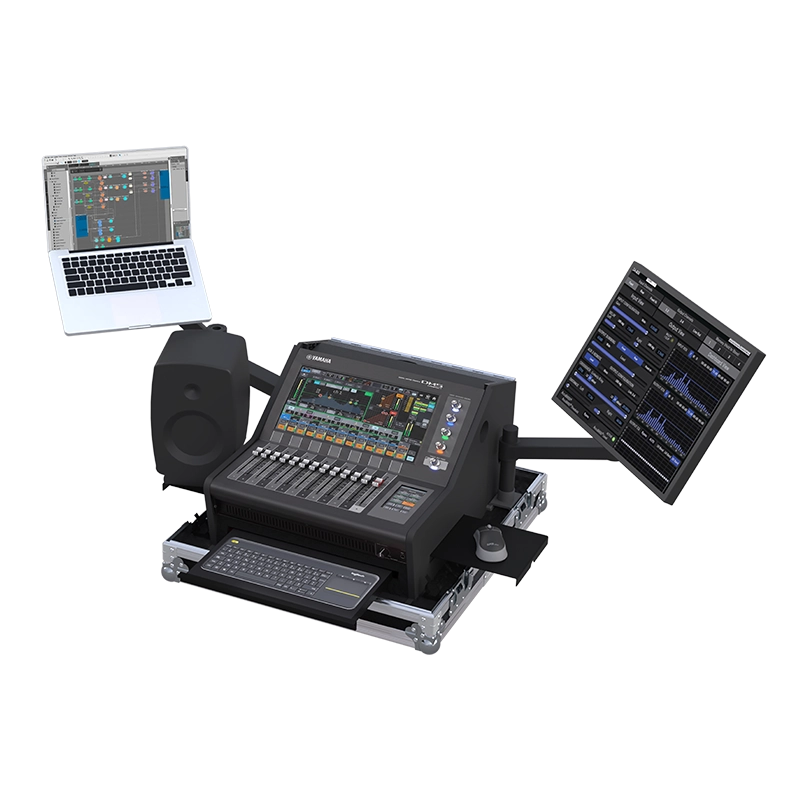

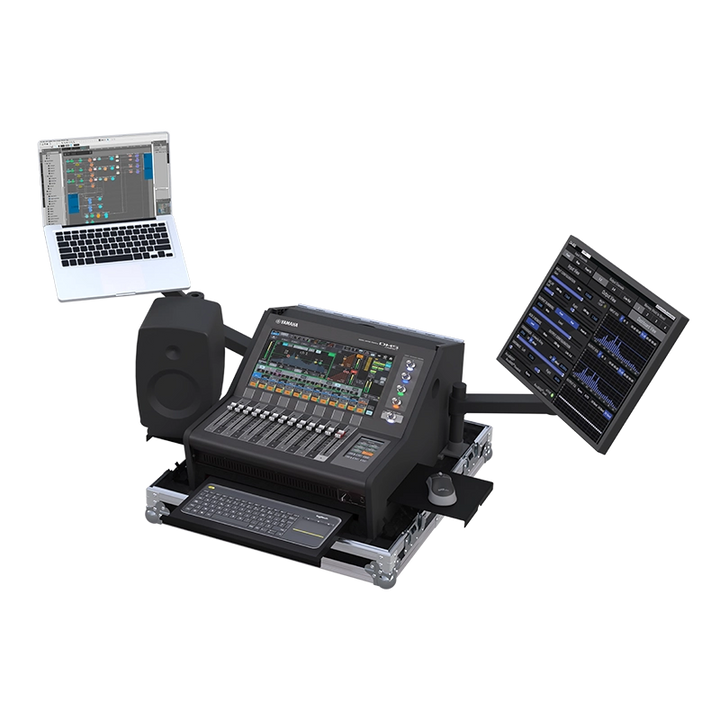

More than a transport case, the CAP168R turns the Yamaha DM5 Compact into a mobile control workstation designed around the needs of professional live sound. The Serie III configuration integrates dedicated areas for the console, accessories, keyboard and mouse operation, allowing the system to move from transport mode to an operational FOH setup with fewer loose components

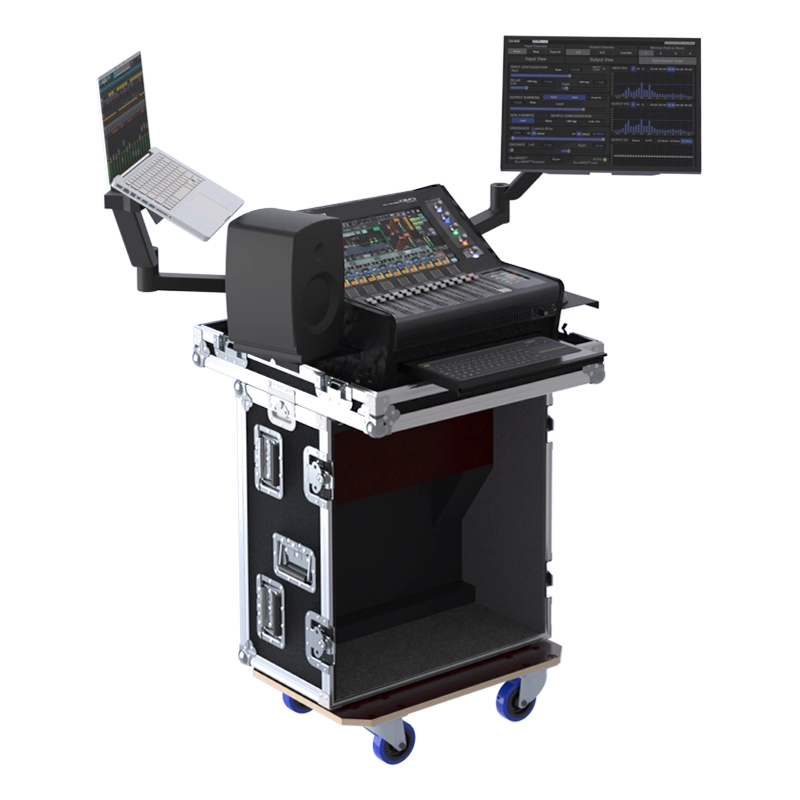

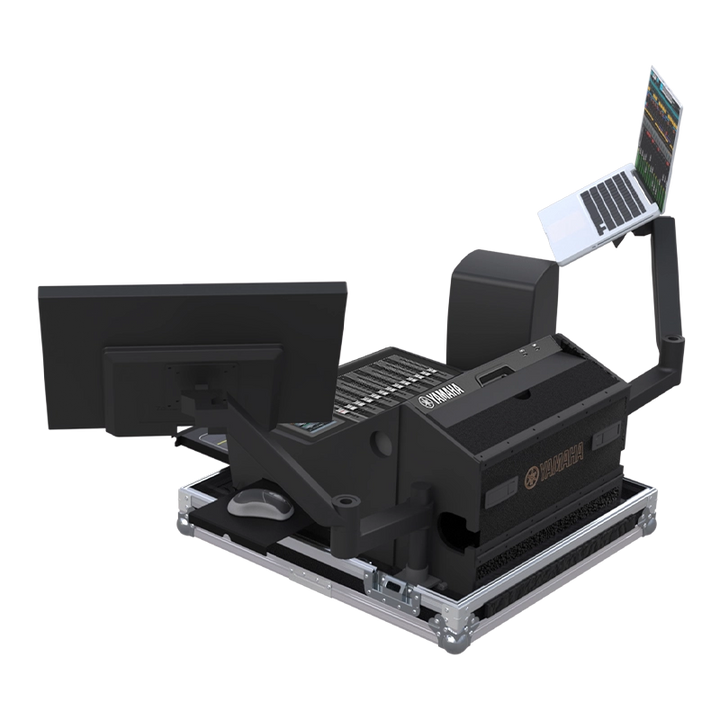

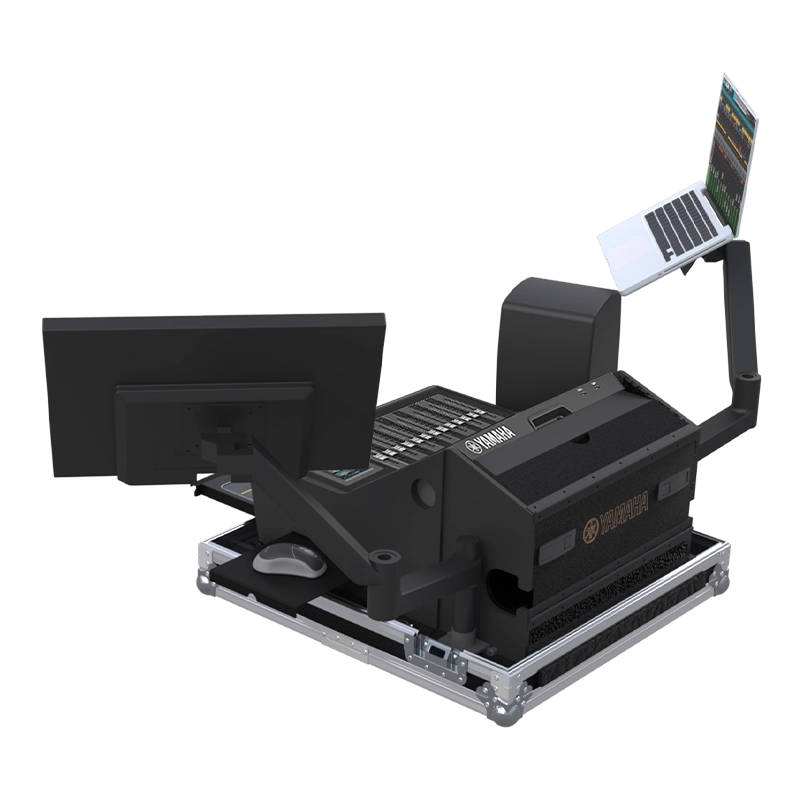

The workstation incorporates a built-in keyboard support, mouse supports, an accessory compartment, XLR connection points and mounting provisions for monitor arms. The support system is designed to work with Gravity or Ergotron solutions, giving technicians flexibility when configuring external screens, laptops and monitoring equipment.

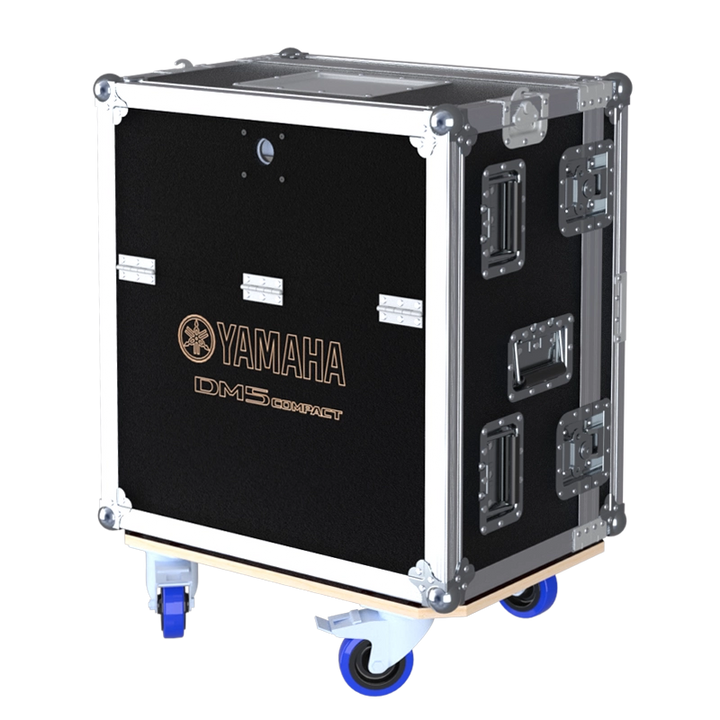

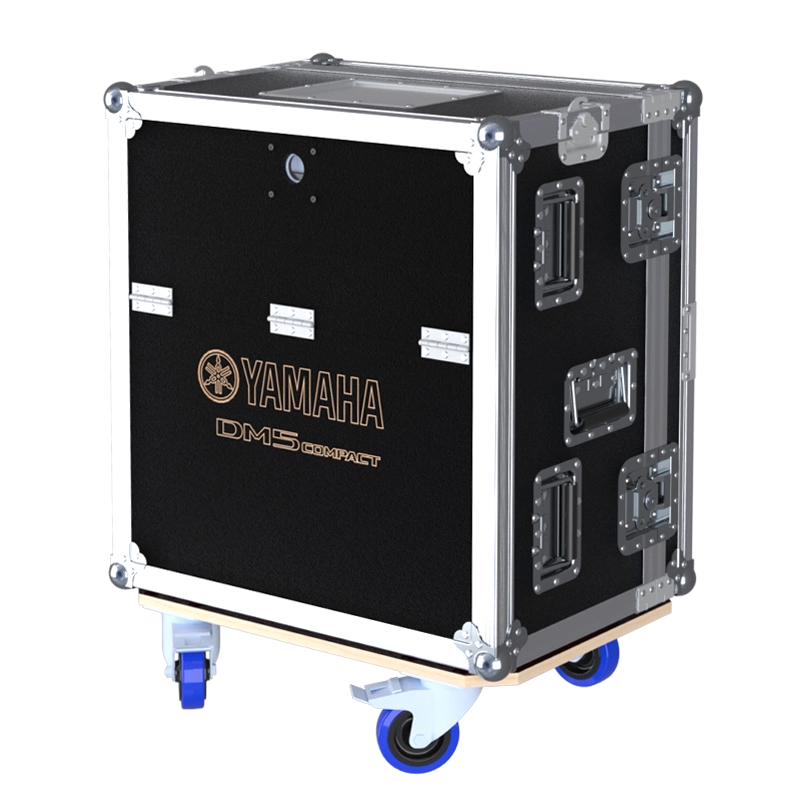

Mobility is handled by 4x Ø100 wheels, including 2 with brakes, while 6 recessed sprung handles provide multiple grip points around the case. The construction also includes eight three-leg ball corners, professional butterfly closures and an identification label. The complete case weighs approximately 54 kg, with an internal equipment space of 480 x 437 x 310 mm

The drawing specifies 2 mouse supports, 1 keyboard support, 1 arm support and 2 XLR connectors as included accessories. Optional equipment includes an Ergotron adaptor, Ergotron LX Desk Arms and Gravity SA 6131 B arm solutions.

Technical Specifications
