ALP FLIGHT CASES TOOL SIDE SLIDING 14U 5x DRAWERS PRO

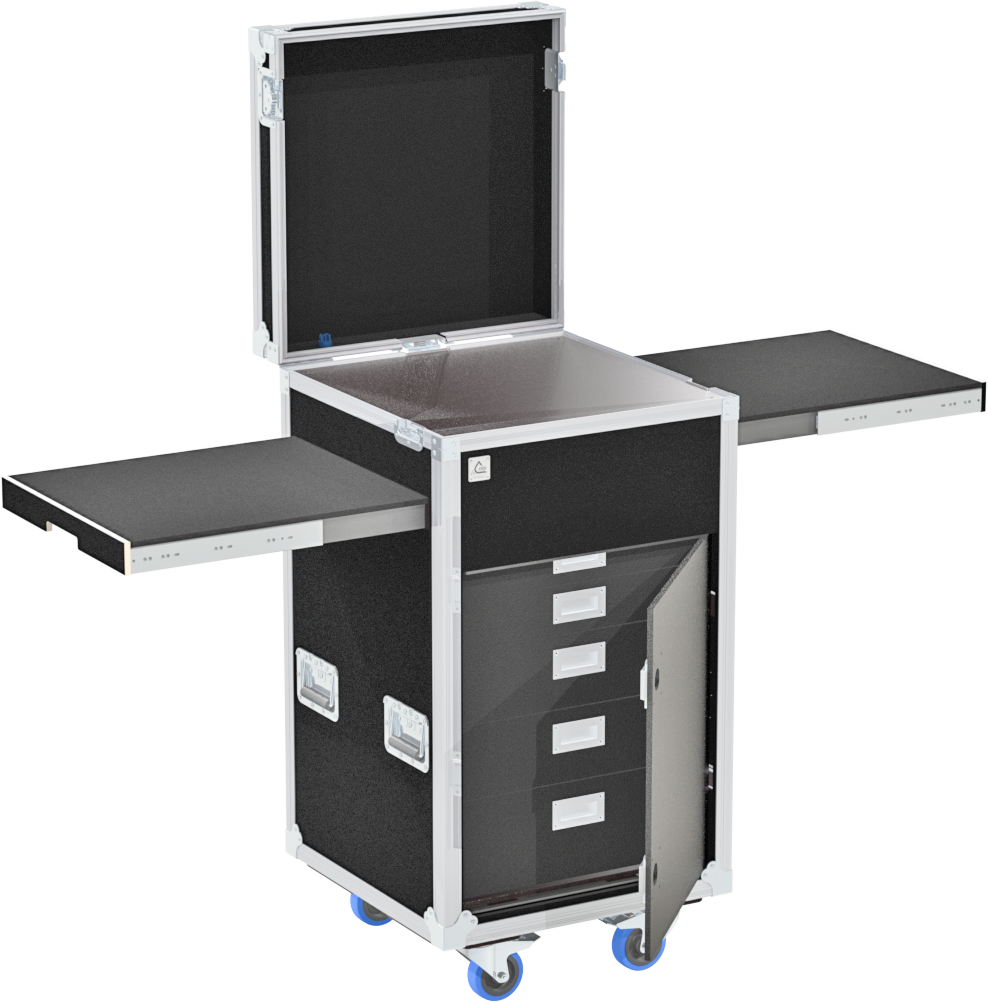

The STP085R is a high-end, multi-functional mobile workstation designed for elite technicians who require a vertical 14U architecture with advanced accessibility. Featuring a unique side-sliding door system and dual integrated work surfaces, this PRO edition serves as a fully electrified command center, perfect for complex technical setups, equipment maintenance, and streamlined tool management.

Rugged Construction & Innovative Access

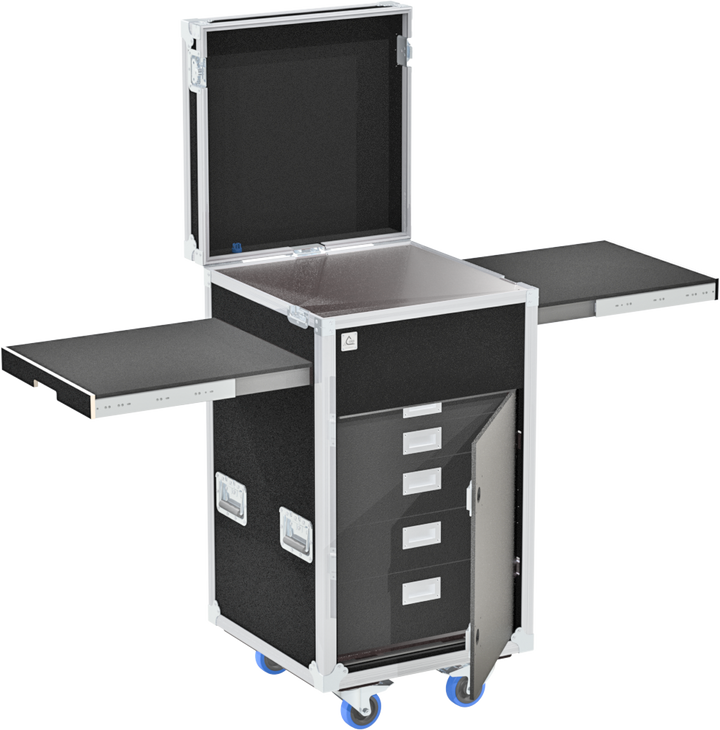

Manufactured from premium 10mm Birch Plywood and finished with a high-resistance black PVC Finishing, this case is built for long-term durability in touring environments. It is reinforced with 8x Heavy-Duty Corners for maximum impact protection. A standout feature is the 1x Sliding Door, which allows for full internal access even in cramped backstage corridors or tight truck packs where traditional swinging doors are impractical.

Advanced Electrification & Workspace

• Integrated Power Hub: Equipped with 1x NEUTRIK PowerCON (NAC3MPA) input and 3x Schuko 2P+E Outlets, allowing you to power workstations, diagnostic tools, and chargers directly from the case.

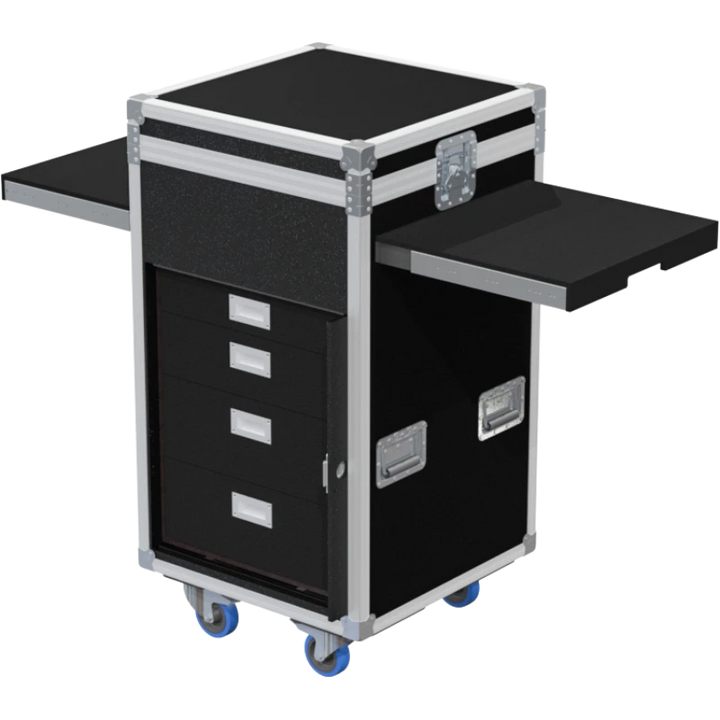

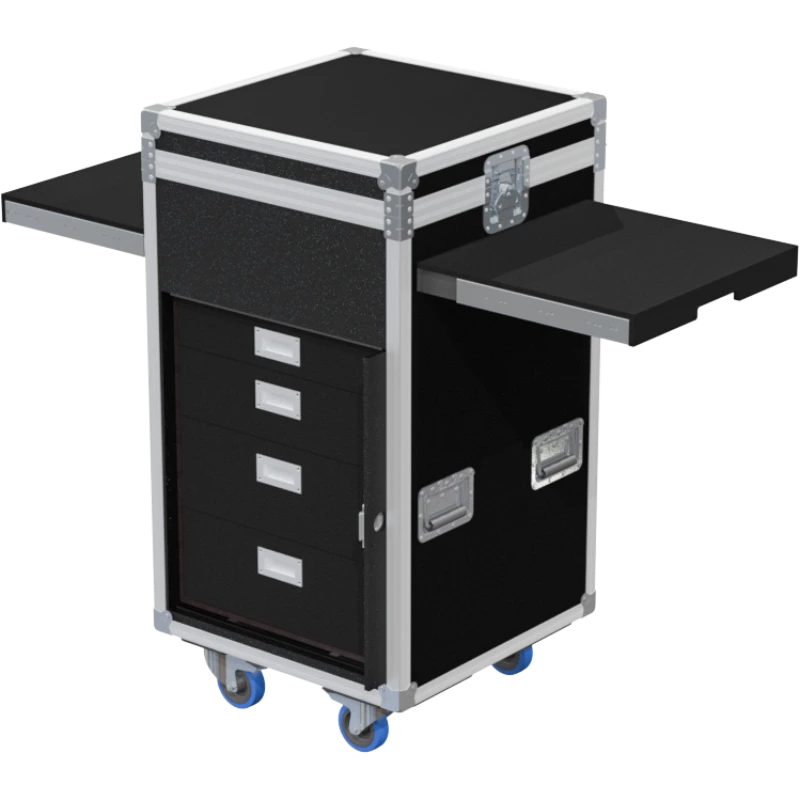

• Dual Work Surfaces: Features 2x Sliding Tables, providing an expansive and stable layout for laptops, testing gear, or administrative tasks without occupying the top of the case.

• Integrated Lighting: Equipped with 1x LED Light for Desktop, ensuring a perfectly illuminated workspace in dark production environments.

Professional Storage & Handling

• 5x Graduated Drawers: The internal layout is optimized for precise organization with a vertical configuration of 2x 2U, 2x 3U, and 1x 4U drawers.

• Security: Secured by 2x Large Butterfly Catches and featuring 1x Lidstay with Hinge for safe and easy top access.

• Mobility: Equipped with 4x Wheels Ø100 (2 with brake) to support the vertical load while maintaining smooth movement across diverse surfaces.

Technical Specifications
