ALP FLIGHT CASES TOOL CASE 18U 5X DRAWERS STD

The TOOL18S01R is a versatile and highly functional mobile workstation designed for technicians who need a combination of organized tool storage and an on-site workspace. Built into a 18U vertical format, this case transforms from a high-capacity tool trunk into a fully electrified standing desk, making it the ideal "hub" for stage, studio, or workshop environments.

Rugged Construction & Workspace Integration

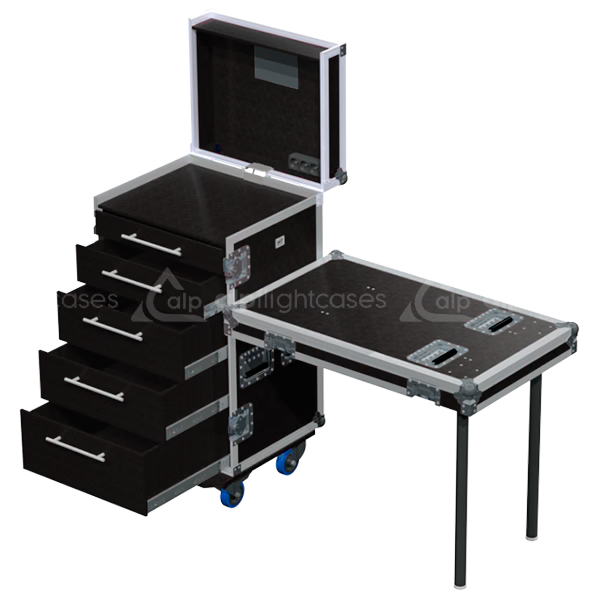

Manufactured from 9mm Birch Plywood with a durable Brown Phenolic Finishing, this case offers professional-grade protection with a classic aesthetic. It is reinforced with 8x Ball Corner Large for impact resistance. Beyond storage, it includes a Rack Table Leg Set (75–78 cm), allowing the lid to be converted into a stable external side table for laptops or testing equipment.

Advanced Electrification & Lighting

• Integrated Power: Features a built-in power distribution system with 1x NEUTRIK PowerCON (NAC3MPA) input and 3x Schuko 2P+E Outlets, allowing you to power your tools, chargers, and laptops directly from the case.

• Desktop Visibility: Equipped with 1x LED Light for Desktop, ensuring a well-lit workspace even in dark backstage areas or during night-time outdoor events.

Storage & Organization

• 5x Graduated Drawers: The internal layout provides logical organization with drawers of varying depths: 2U, 3U, 4U, 4U, and 5U. This allows for the safe separation of precision tools, cables, and larger hardware.

• Security: Secured by 4x Large Butterfly Catches and featuring 1x Lidstay with Hinge for safe internal access.

• Inventory Tracking: Includes 1x Dish for Tour Label for professional equipment management.

Mobility & Handling

• Industrial Wheels: Equipped with 4x Wheels Ø100 (2 with brake) to support the significant weight of a fully loaded 18U station.

• Ergonomics: Features 8x Recessed Sprung Handles, ensuring balanced lifting and easy maneuvering by multiple crew members.
