ALP FLIGHT CASES TOOL CASE 18U 5x DRAWERS PRO

The TOOL18P01R is a premium, high-performance mobile workstation designed for touring technicians who require a heavy-duty storage solution combined with an on-site workspace. Built into a vertical 18U format, this PRO edition features five integrated drawers and transforms into a fully electrified standing desk, serving as a centralized "hub" for technical operations in any environment.

Rugged Construction & Workspace Integration

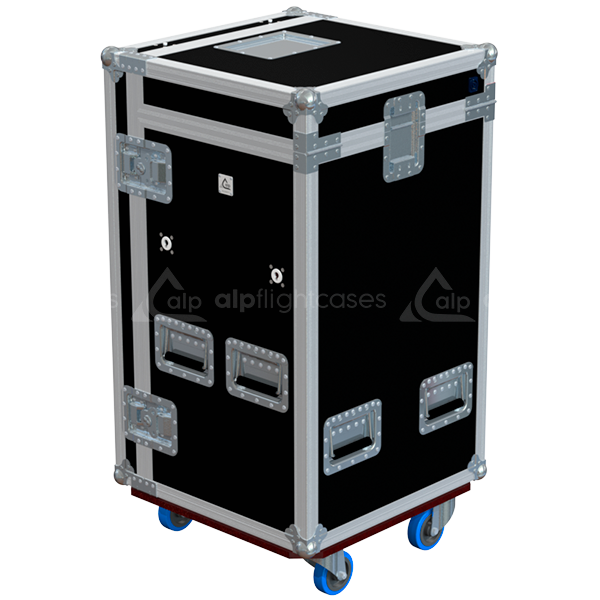

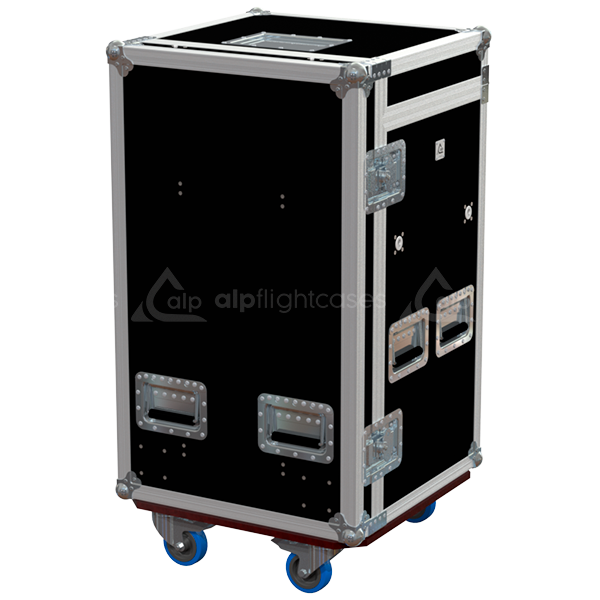

Manufactured from premium 10mm Birch Plywood and protected by a high-resistance black PVC Finishing, this case is engineered for the extreme rigors of global touring. It is reinforced with 8x Ball Corner Large for superior impact resistance. A key feature is the included Rack Table Leg Set (75–78 cm), which allows the lid to be converted into a stable external side table, providing an immediate workspace for laptops or diagnostic equipment.

Advanced Electrification & Lighting

• Integrated Power: Features a built-in power distribution hub with 1x NEUTRIK PowerCON (NAC3MPA) input and 3x Schuko 2P+E Outlets, allowing you to power workstations, chargers, and tools directly from the case.

• Worksurface Visibility: Equipped with 1x LED Light for Desktop, ensuring a perfectly illuminated workspace even in the darkest backstage environments.

Professional Storage & Organization

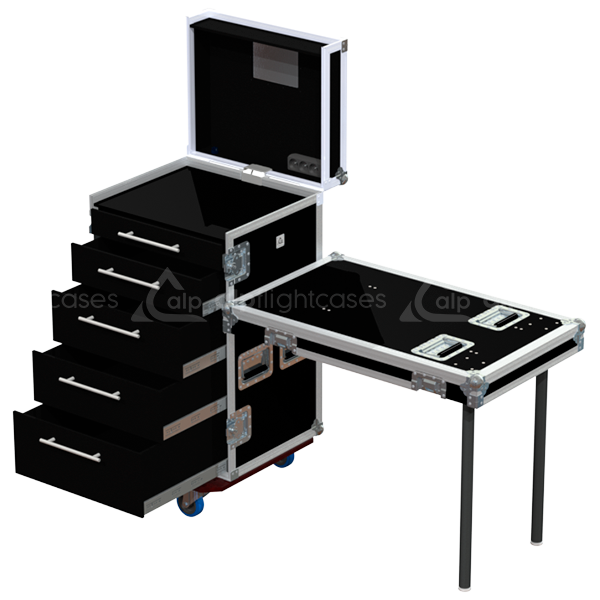

• 5x Graduated Drawers: The internal layout provides logical organization with drawers of varying depths: 2U, 3U, 4U, 4U, and 5U. This allow for the safe separation of everything from small precision components to heavy-duty power tools.

• Security: Secured by 4x Large Butterfly Catches and featuring 1x Lidstay with Hinge for safe and easy internal access.

• Inventory Tracking: Includes 1x Dish for Tour Label for professional asset management and quick identification.

Mobility & Handling

• Industrial Wheels: Equipped with 4x Wheels Ø100 (2 with brake) designed to support the significant weight of a fully loaded 18U professional station.

• Ergonomics: Features 8x Recessed Sprung Handles, strategically distributed to ensure balanced lifting and comfortable maneuvering by technical crews.

Technical Specifications
