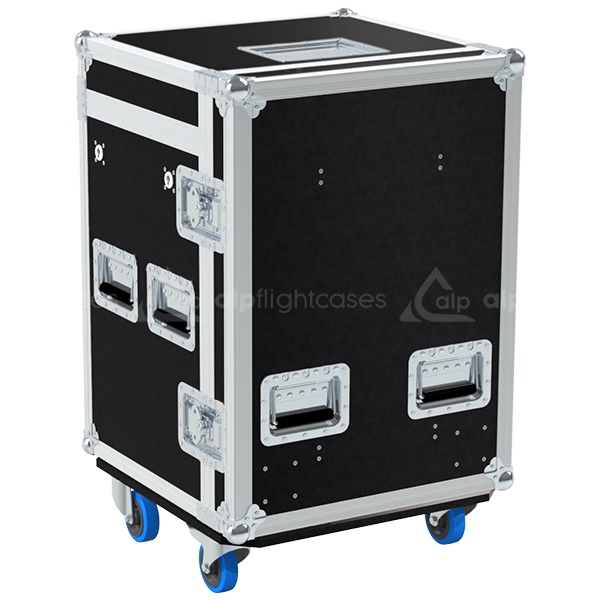

ALP FLIGHT CASES TOOL CASE 14U 4x DRAWERS PRO

The TOOL14P01R is a compact, high-performance professional mobile workstation designed for technicians who require a high-density storage solution and a fully integrated on-site office. Built into a 14U vertical format, this PRO edition balances easy maneuverability with advanced features, transforming from a heavy-duty tool trunk into a fully electrified standing desk—the perfect logistical "hub" for stage, studio, or event technical management.

Rugged Construction & Workspace Integration

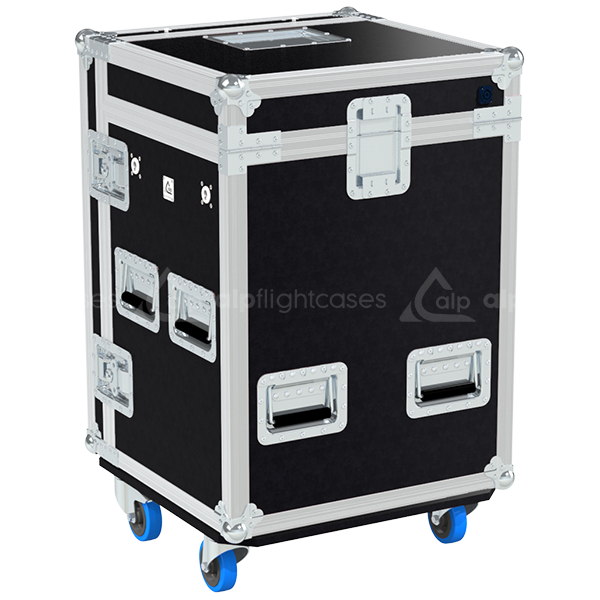

Manufactured from premium 10mm Birch Plywood with a high-resistance black PVC Finishing, this case is engineered for the rigors of the road. It is reinforced with 8x Ball Corner Large for superior structural integrity. A key professional feature is the included Rack Table Leg Set (75–78 cm), which allows the lid to be converted into a stable external side table, providing an immediate workspace for laptops, controllers, or diagnostic equipment.

Advanced Electrification & Lighting

• Integrated Power: Features a built-in power distribution system with 1x NEUTRIK PowerCON (NAC3MPA) input and 3x Schuko 2P+E Outlets, allowing you to power your technical gear directly from the case.

• Worksurface Visibility: Equipped with 1x LED Light for Desktop, ensuring a perfectly illuminated workspace even in dark backstage areas or during late-night load-outs.

Professional Storage & Organization

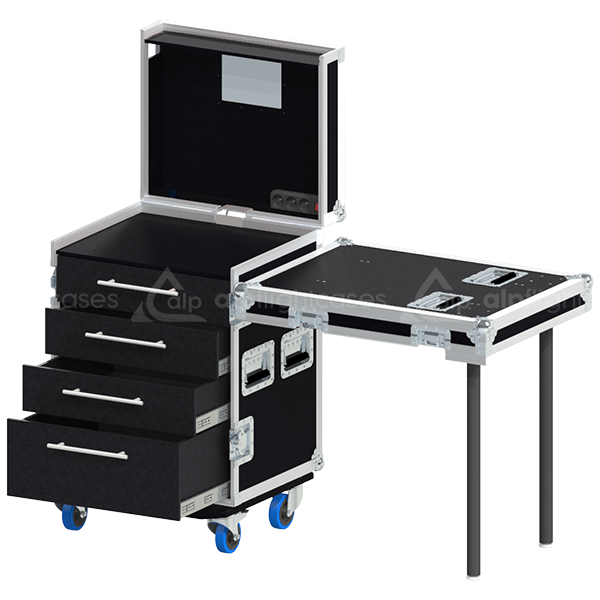

• 4x Graduated Drawers: The internal layout provides logical organization with drawers of varying depths: 3x 3U and 1x 5U. This configuration allows for the safe separation of precision tools, essential cables, and larger hardware.

• Security: Secured by 4x Large Butterfly Catches and featuring 1x Lidstay with Hinge for safe internal access.

• Inventory Management: Includes 1x Dish for Tour Label for professional equipment identification and tracking.

Mobility & Handling

• Industrial Wheels: Equipped with 4x Wheels Ø100 (2 with brake) to support the load of a professional 14U station while maintaining smooth movement.

• Ergonomics: Features 8x Recessed Sprung Handles, strategically distributed to ensure balanced lifting and easy maneuvering by crew members.

Technical Specifications
