ALP FLIGHT CASES RACK 3D STD 19" 16U 12U-UP/DOWN
R3S1612R

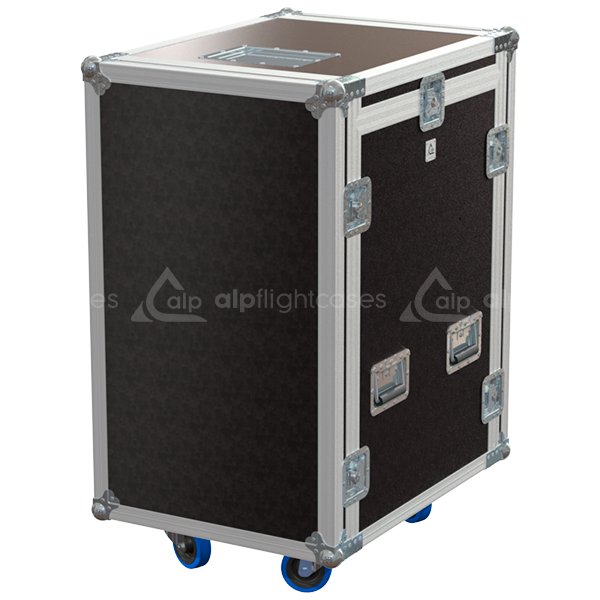

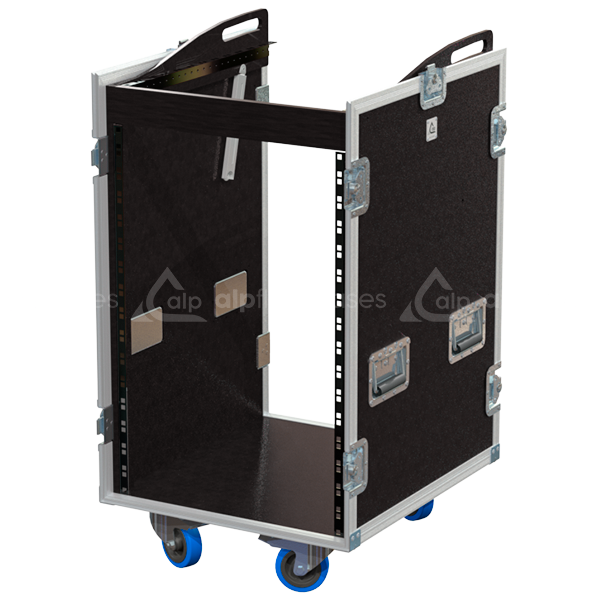

Build the ultimate mobile workstation for your complex audio, video, or lighting setups with the Rack 3D STD 19" 16U 12U-Up/Down. Featuring a multi-directional configuration, it provides 16U of standard front and rear rack space combined with an additional 12U of top/bottom mounting capability. Complete with heavy-duty castors, this versatile "3D" flight case is perfect for housing top-mounted mixing consoles alongside extensive outboard processing and power distribution gear.
Rugged Construction & Maximum Protection
Constructed from robust 9mm birch plywood, this formidable case is finished with our classic Brown Phenolic Finishing, offering excellent resistance against scratches, moisture, and impact. Heavy-duty 35mm cranked ball corners provide exceptional structural integrity, ensuring your sensitive multi-rack system survives the harshest touring environments.
Hardware & Features
Loaded with premium, tour-grade hardware for effortless transport and secure locking:
-
8x Ball Corner Large Three-Leg Cranked 35mm 9 holes
-
10x Medium Butterfly Catches
-
4x Handles
-
1x Dish For Tour Label
-
4x Wheels Ø100 (2 With Brake)
-
Front and Rear 19" Rack Plumb
Technical Specifications
| Feature | Details |
| Reference: | R3S1612R |
| Compatibility: | 3D Rack 19", 16U Front/Rear, 12U Up/Down |
| Material: | 9mm Birch Plywood |
| Coating: | Brown Phenolic Finishing |
| Corners: | 8x Ball Corner Large 3-Leg Cranked 35mm (9 holes) |
| Catches: | 10x Medium Butterfly Catches |
| Handles: | 4x Handles |
| Wheels: | 4x Wheels Ø100 (2 With Brake) |
| Accessories: | 1x Dish For Tour Label, Front/Rear Rack Plumb |
