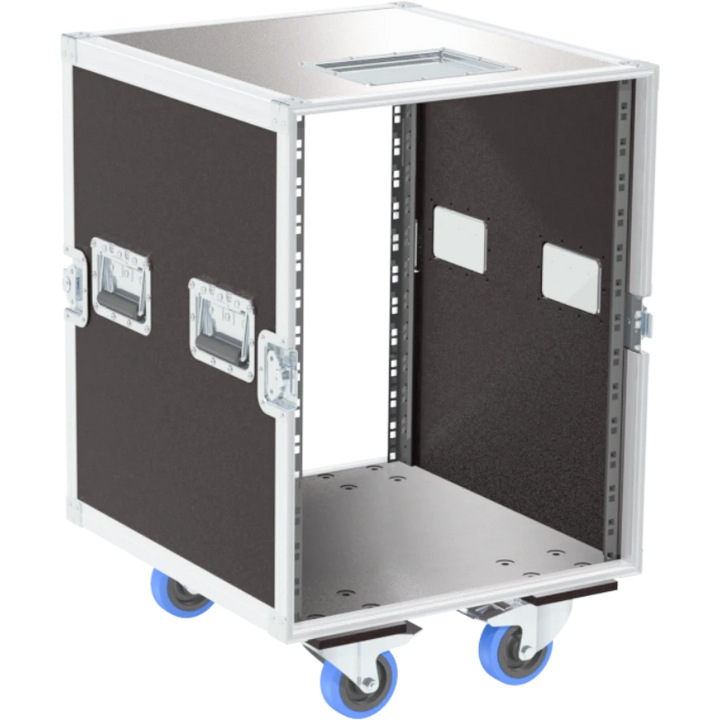

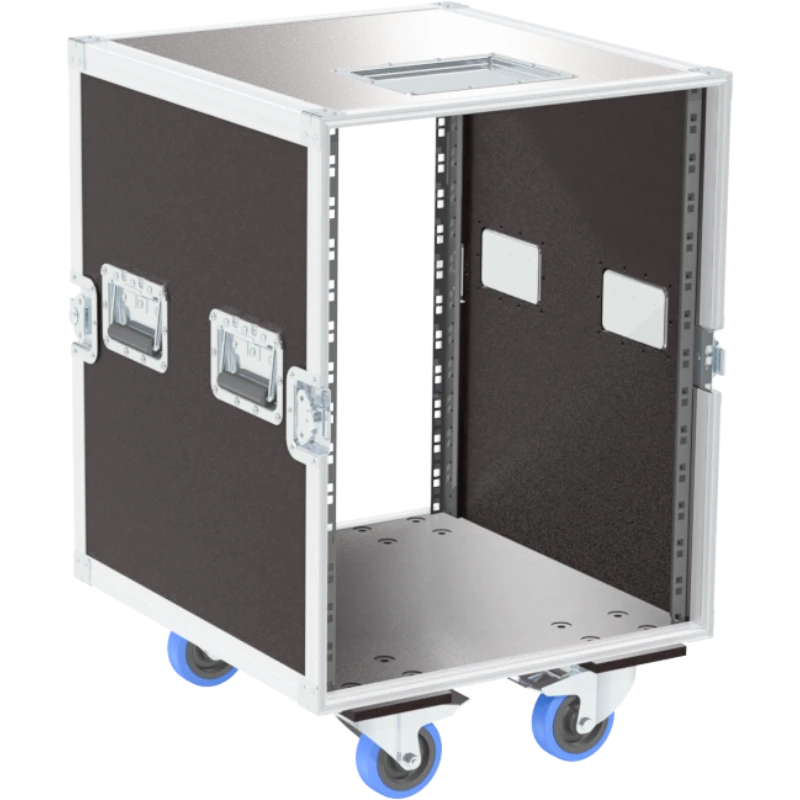

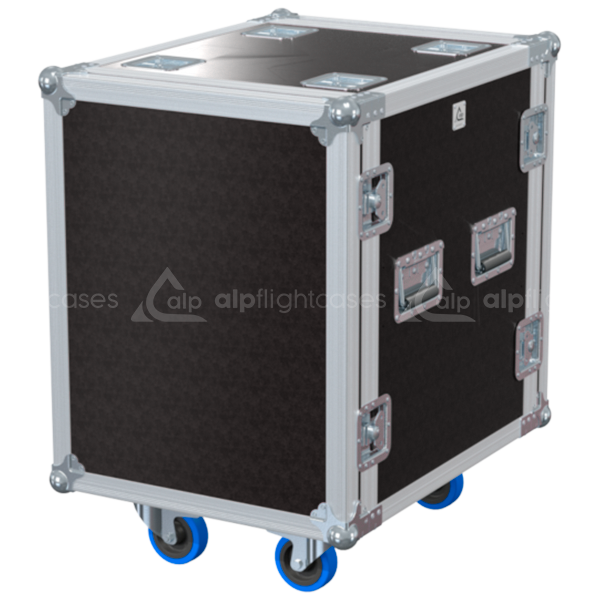

The R2S1455R is built for professional rack systems that require a substantial 14U capacity with 550mm depth, while still keeping the equipment organized in a dedicated touring enclosure. Front and rear 19" rack mounting gives technicians practical access from both sides during installation, service, and connection.
For transport, the case uses 4x Wheels Ø100 (2 With Brake) together with 4 recessed sprung handles, making it easier to move and position the rack on site. 8 medium butterfly catches secure the enclosure, while 4 stacking dishes support more stable placement when several cases are stored or transported together.
The shell is manufactured from 9mm Birch Plywood with Brown Phenolic Finishing and reinforced by 8 large three-leg cranked ball corners, 35mm with 9 holes. Overall dimensions are 545 x 734 x 802 mm.
Technical Specifications
| Feature |
Details |
| Reference: |
R2S1455R |
| Product Type: |
19" Rack Flight Case |
| Compatibility: |
2D STD 19" Rack, 14U, 550mm Depth |
| Overall Dimensions: |
545 x 734 x 802 mm |
| Material: |
9mm Birch Plywood |
| Finishing: |
Brown Phenolic Finishing |
| Corners: |
8x Ball Corner Large, Three-Leg Cranked 35mm, 9 Holes |
| Wheels: |
4x Wheels Ø100 (2 With Brake) |
| Handles: |
4x Recessed Sprung Handles |
| Catches: |
8x Medium Butterfly Catches |
| Accessories: |
4x Dish For Stacking |
| Rack: |
Front and Rear 19" Rack Plumb |
