Designed as a dedicated touring solution for 2x NEXO VNT-BUMPM10 bumpers and associated rigging accessories, this ALP flight case combines transport protection with an organized internal layout for several components of the NEXO rigging system.

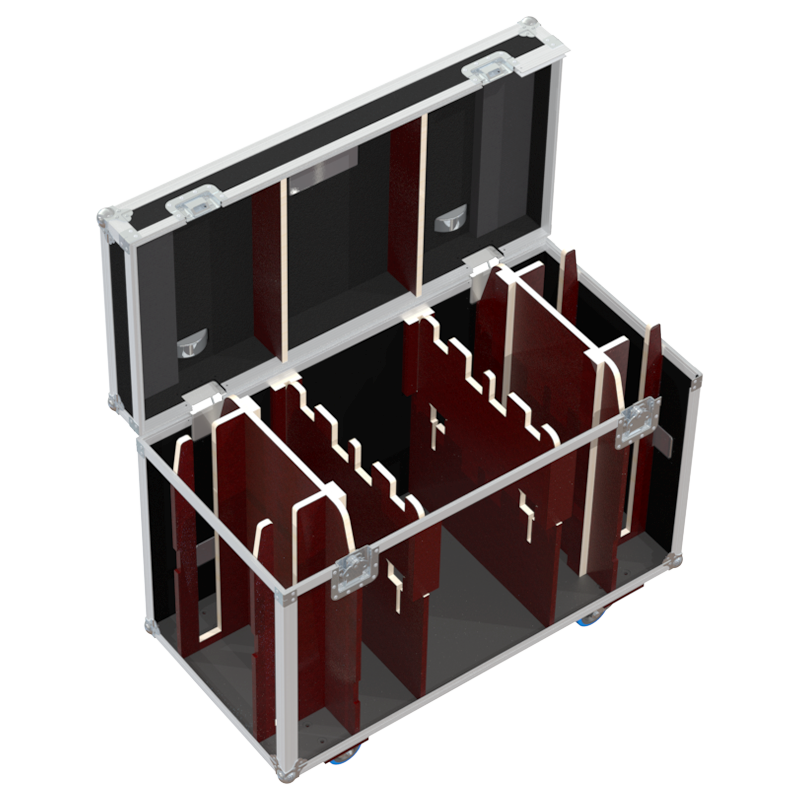

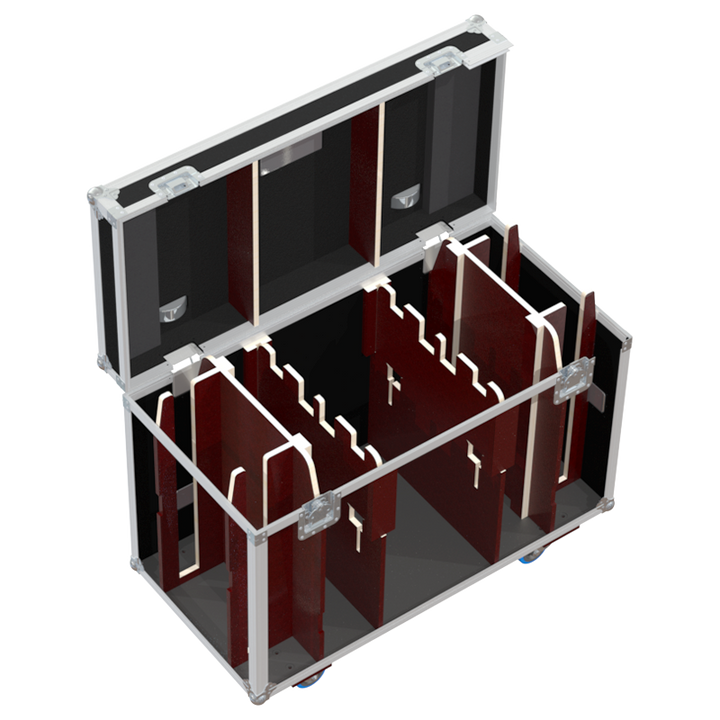

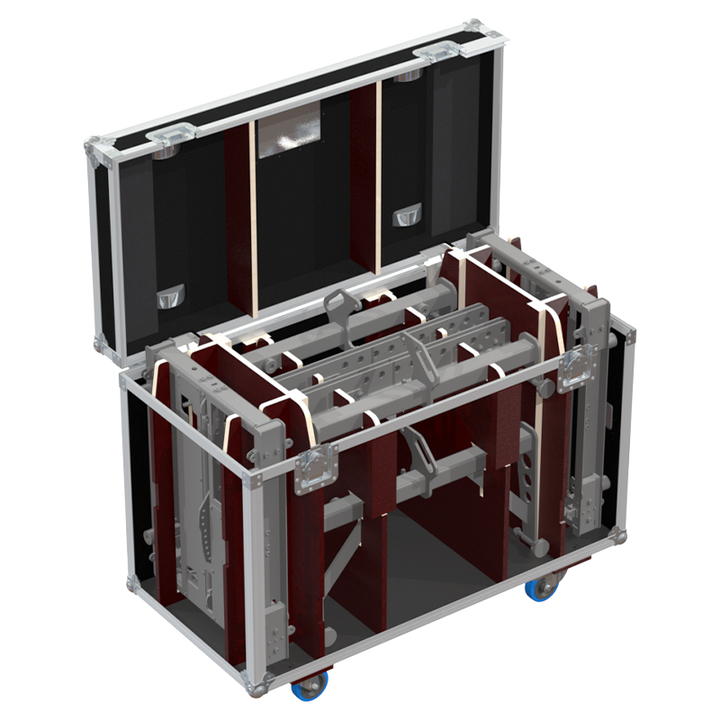

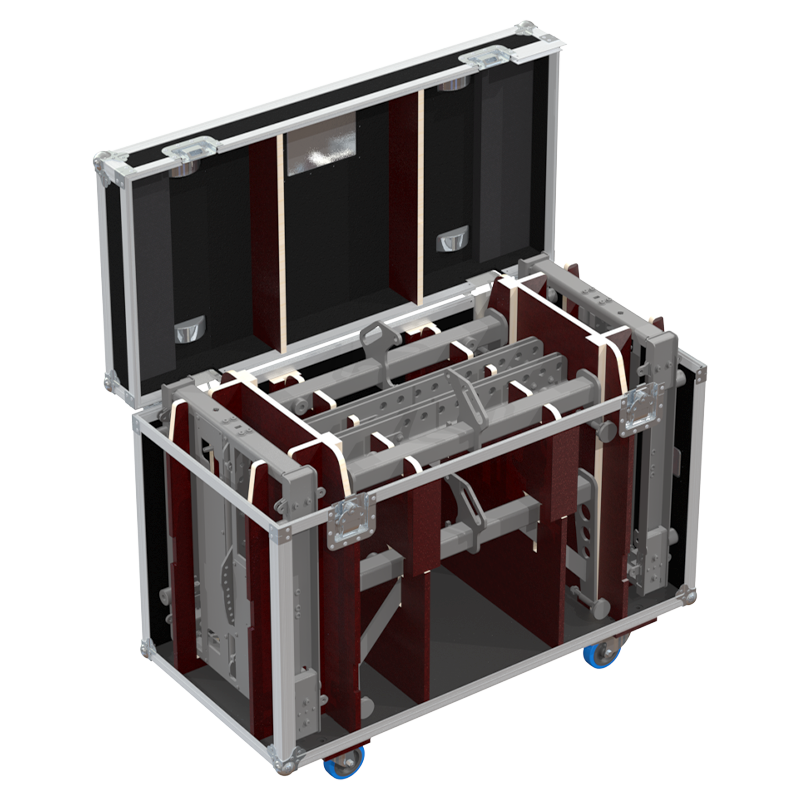

The technical layout provides dedicated positions for 2x VNT-BUMPM10, 2x VNT-GSTKM10L, 2x VNT-GSTKM10S and 2x VNT-EXBARM10. Removable internal dividers allow the different rigging components to remain separated and organized during transport.

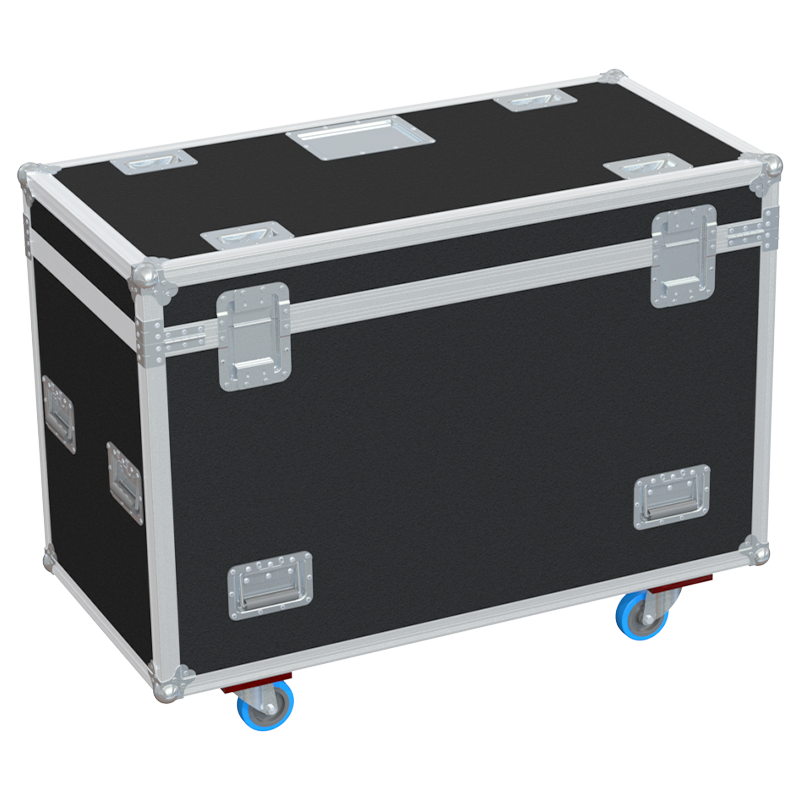

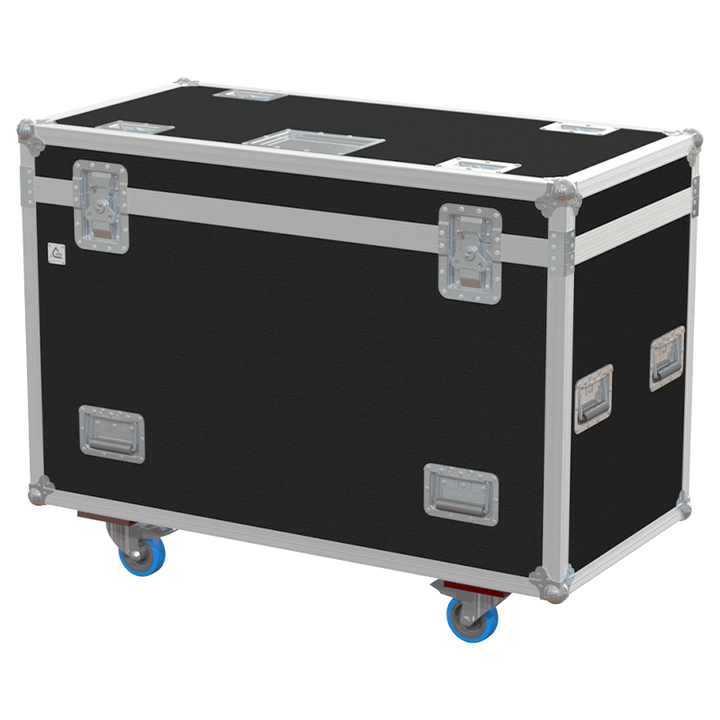

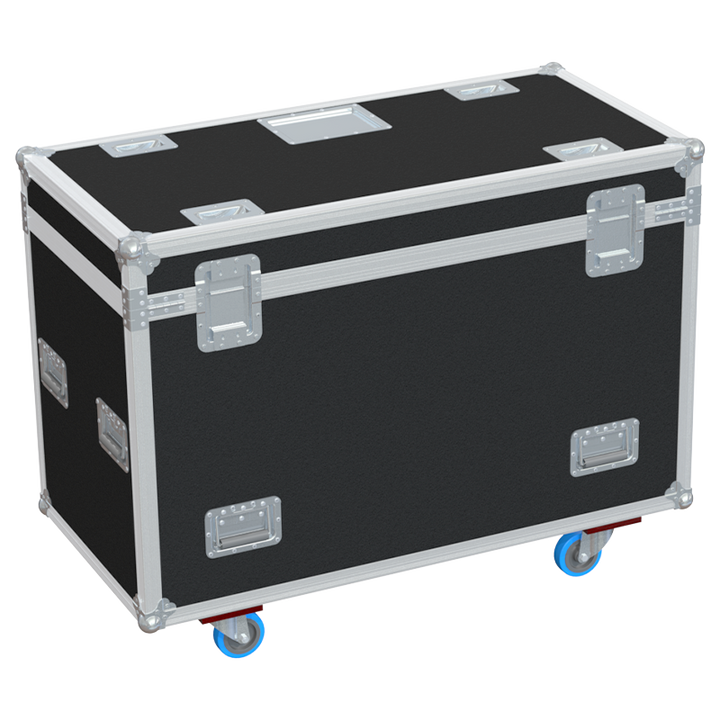

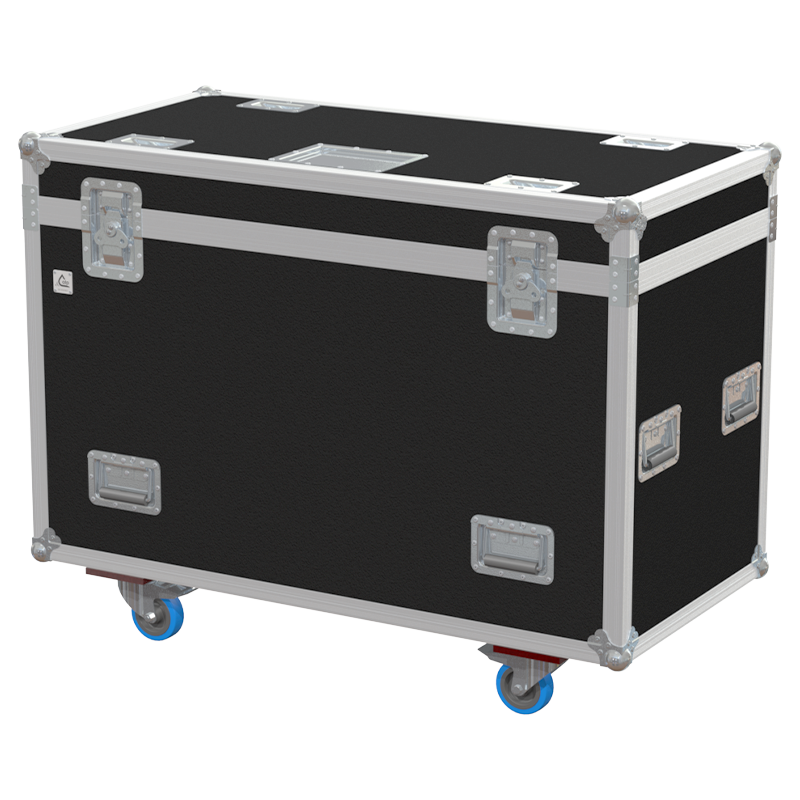

For touring logistics, the case is equipped with 4x Ø100 swivel castors, including two with brakes, eight recessed sprung handles and four castor dishes integrated into the top for stacking. The case has approximate external dimensions of 1203 x 603 x 923 mm, internal dimensions of 1160 x 560 x 750 mm, and an approximate weight of 68 kg.
Key Features
- Designed around 2x NEXO VNT-BUMPM10
- Dedicated storage for additional NEXO rigging accessories
- Removable internal divider system
- Internal dimensions: 1160 x 560 x 750 mm
- Approx. overall dimensions: 1203 x 603 x 923 mm
- Approx. weight: 68 kg
- 9mm wall thickness
- 8x Corner Brace for 35mm Angle Case
- 8x Ball Corner Large
- 8x Recessed Sprung Handles
- 4x Wheels Ø100, including 2 with brake
- 2x Large Butterfly Catches with Push-Back function
- 2x Lid Stay With Hinge
- 1x Dish For Tour Label
- 4x Castor Dishes for stacking
- 30mm Plastazote LD29 protective elements
Technical Specifications
| Feature |
Details |
| Reference: |
RIG2P032R |
| Product Type: |
Flight Case for NEXO Rigging Equipment with Wheels |
| Main Compatibility: |
2x NEXO VNT-BUMPM10 |
| Additional Equipment: |
2x VNT-GSTKM10L + 2x VNT-GSTKM10S + 2x VNT-EXBARM10 |
| Approx. Overall Dimensions: |
1203 x 603 x 923 mm |
| Internal Dimensions: |
1160 x 560 x 750 mm |
| Wall Thickness: |
9mm |
| Approx. Weight: |
68 kg |
| Corner Braces: |
8x Corner Brace for 35mm Angle Case |
| Corners: |
8x Ball Corner Large |
| Handles: |
8x Recessed Sprung Handles |
| Wheels: |
4x Wheels Ø100, including 2 with brake |
| Closures: |
2x Large Butterfly Catches with Push-Back function |
| Lid Support: |
2x Lid Stay With Hinge |
| Tour Label: |
1x Dish For Tour Label |
| Stacking: |
4x Castor Dishes |
| Interior: |
Removable divider system |
| Protective Material: |
2x Plastazote LD29, 560 x 150 x 30 mm |
The internal arrangement and hardware specifications are shown across pages 1–5 of the technical drawing, while page 10 identifies the 30mm Plastazote LD29 protective elements.
