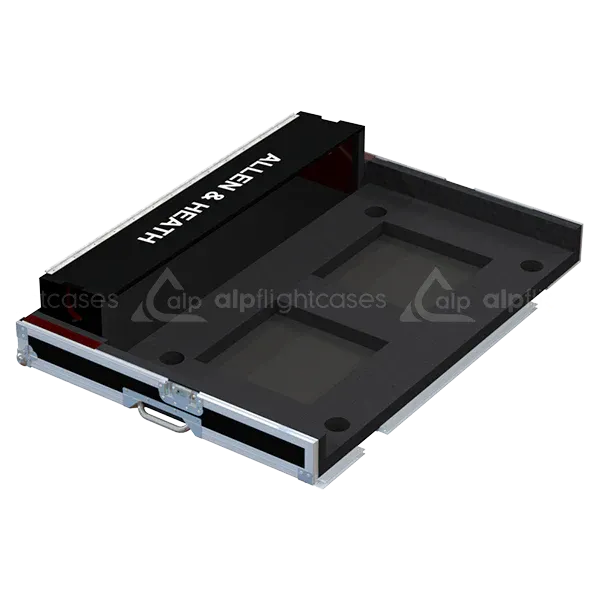

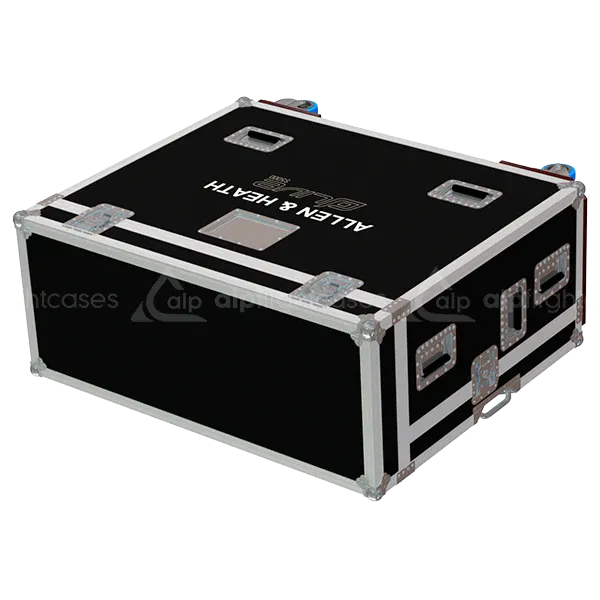

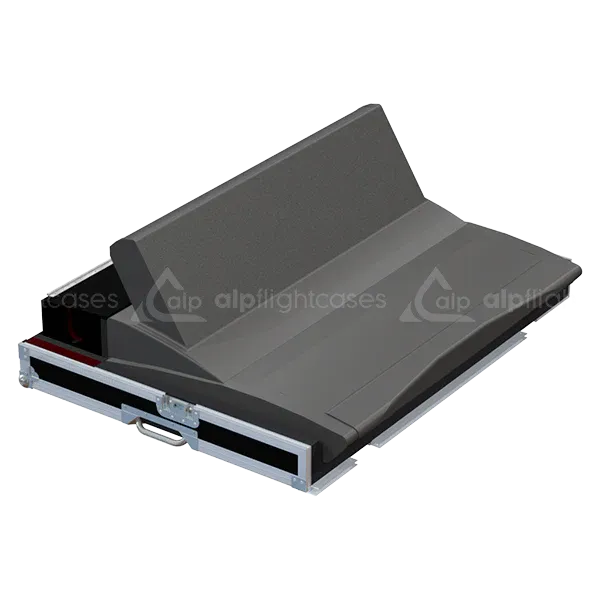

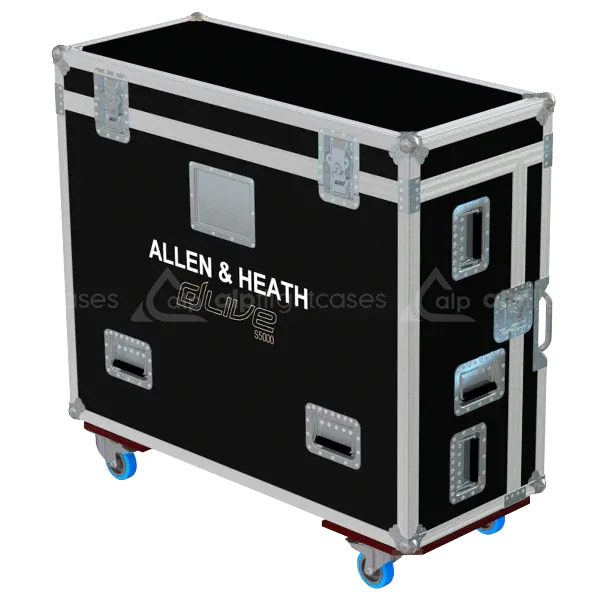

Designed around the transport and working requirements of the Allen & Heath dLive S5000, the CAP071R combines the console and its Dog House configuration in a professional flight case measuring 1223 mm in overall length. The rear Dog House area supports a cleaner FOH workflow by keeping connection and cable space integrated with the console case.

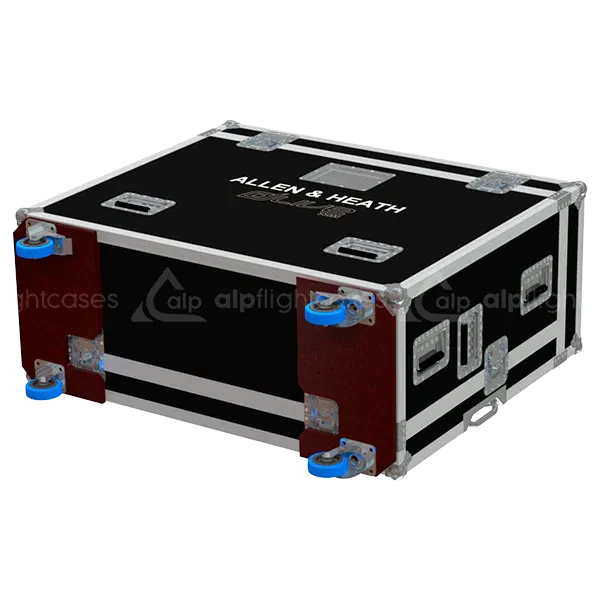

For a large-format console system, practical handling is essential. The case therefore combines 10 handles with 2 case edge handles, providing multiple grip points for lifting, guiding, and positioning. 4x Wheels Ø100 (2 With Brake) allow the case to move efficiently between warehouse, truck, backstage, and control positions, while 6 large butterfly catches secure the enclosure during transport.
Construction is based on 10mm Birch Plywood with PVC Finishing, protected at the corners by 8 large ball corners. A dedicated tour label dish simplifies case identification within professional rental and touring inventories. Overall dimensions are 1223 x 517 x 1154 mm.
Technical Specifications
| Feature |
Details |
| Reference: |
CAP071R |
| Product Type: |
Flight Case for Digital Mixing Console + Dog House |
| Compatibility: |
Allen & Heath dLive S5000 + Dog House |
| Overall Dimensions: |
1223 x 517 x 1154 mm |
| Materials: |
10mm Birch Plywood |
| Finishing: |
PVC Finishing |
| Corners: |
8x Ball Corner Large |
| Wheels: |
4x Wheels Ø100 (2 With Brake) |
| Handles: |
10x Handles |
| Case Edge Handles: |
2x Case Edge Handles |
| Closures: |
6x Large Butterfly Catches |
| Identification: |
1x Dish For Tour Label |
| Configuration: |
Integrated Dog House |
