ALP Flight Case for 8x Ayrton MagicDot Neo
LMH8P010R

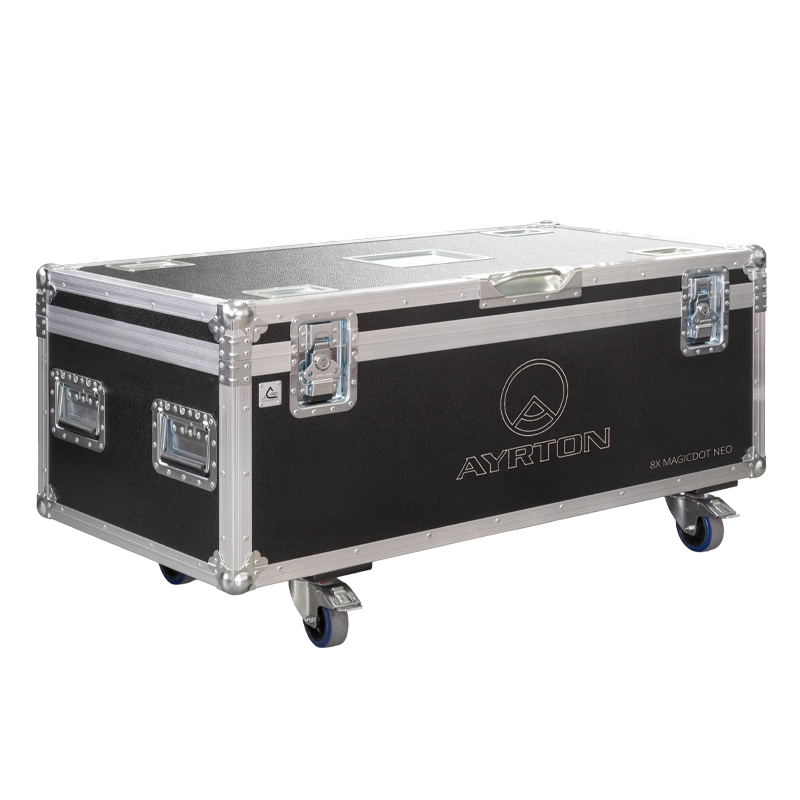

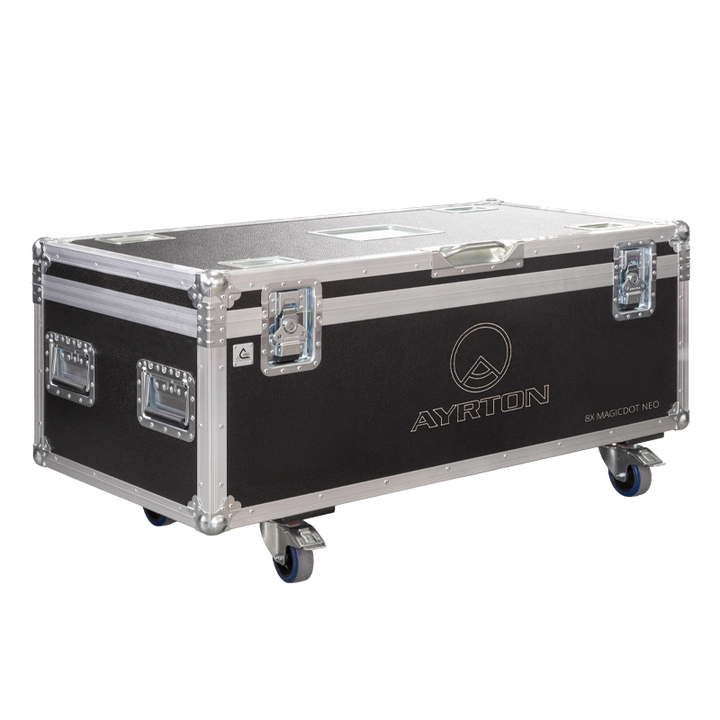

The ALP Flight Case for 8x Ayrton MagicDot Neo is a professional touring flight case designed to protect and transport eight Ayrton MagicDot Neo fixtures. Built for lighting rental companies, touring productions, festivals, technical warehouses, venues, and live event crews, this case provides reinforced protection, organized internal positioning, and practical handling for professional lighting workflows.
The technical drawing shows a dedicated internal layout with 8 individual fixture positions, HD foam protection, internal dimensions of 1160 x 560 x 397 mm, overall dimensions of 1203 x 603 x 572 mm, approximate weight of 32 kg, and 10mm wall thickness.
Manufactured with 10mm birch plywood, reinforced aluminium profiles, HD foam protection, 4x Ø100 wheels, large spring handles, ball corners, butterfly catches, stackable wheel dishes, drain panels, and identification plates, this 8x Ayrton MagicDot Neo flight case is engineered for repeated touring use, safe fixture transport, and efficient warehouse, truck, and venue logistics.
Professional Protection for 8x Ayrton MagicDot Neo
Designed for Professional Fixture Transport

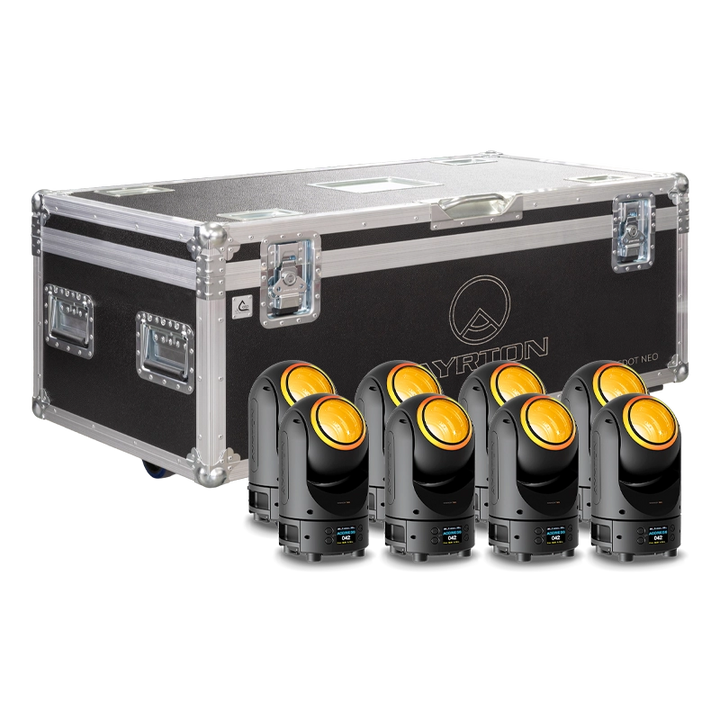

The ALP Flight Case for 8x Ayrton MagicDot Neo is designed to keep eight fixtures securely positioned during storage, transport, loading, unloading, touring, rental operations, and live production setups.
The internal configuration uses dedicated fixture spaces and HD foam protection, helping protect the equipment against impact, vibration, movement, dust, and daily handling wear.
10mm Birch Plywood Construction
Rigid Touring-Grade Structure
The case is built with 10mm birch plywood, providing a strong and reliable shell for professional lighting transport.
With an approximate weight of 32 kg, internal dimensions of 1160 x 560 x 397 mm, and overall dimensions of 1203 x 603 x 572 mm, this flight case is sized for professional transport while maintaining robust protection for eight Ayrton MagicDot Neo units.
Reinforced Touring Hardware
Handles, Ball Corners, Butterfly Catches and Wheel System
The flight case includes 4x large spring handles, giving technicians reliable grip points for controlled lifting, loading, and positioning.
The structure is reinforced with 8x three-leg ball corners, angle reinforcements, butterfly catches, hinged lid support catches, and aluminium profiles. The case also includes 4x Ø100 wheels, including 2 with brake, making it easier to move in warehouses, venues, production areas, stages, loading docks, and truck packs.
Practical Touring Details
Identification, Stackability and Drain Panels
The case includes an identification plate, recessed tour label area, stackable wheel dishes, and drain panels. These details support organization, stacking, identification, and practical use in demanding production environments.
The wheel dishes allow safer stacking during transport and storage, while the drain panels help the case perform better in touring conditions where equipment is regularly moved between indoor and outdoor environments.
Technical Specifications
| Feature | Details |
|---|---|
| Reference: | LMH8P010R |
| Product Type: | Flight Case with Wheels |
| Compatibility: | 8x Ayrton MagicDot Neo |
| Overall Dimensions: | 1203 x 603 x 572 mm |
| Interior Dimensions: | 1160 x 560 x 397 mm |
| Approx. Weight: | 32 kg |
| Wall Thickness: | 10mm |
| Main Material: | 10mm Birch Plywood |
| Interior Protection: | HD Foam |
| Corners: | 8x Three-Leg Ball Corners |
| Handles: | 4x Large Spring Handles + 1x Metal Corner Handle |
| Catches: | 2x Push & Back Butterfly Catches |
| Lid Support Catches: | 2x Hinged Lid Support Catches |
| Wheels: | 4x Ø100 Wheels, including 2 with brake |
| Wheel Dishes: | 4x Stackable Curved Wheel Dishes |
| Drain Panels: | 4x Drain Panels |
| Identification: | 1x Identification Plate + 1x Recessed Tour Label |
| Aluminium Profiles: | Reinforced aluminium L profiles |
| Additional Reinforcements: | Angle reinforcements and wheel feet |
