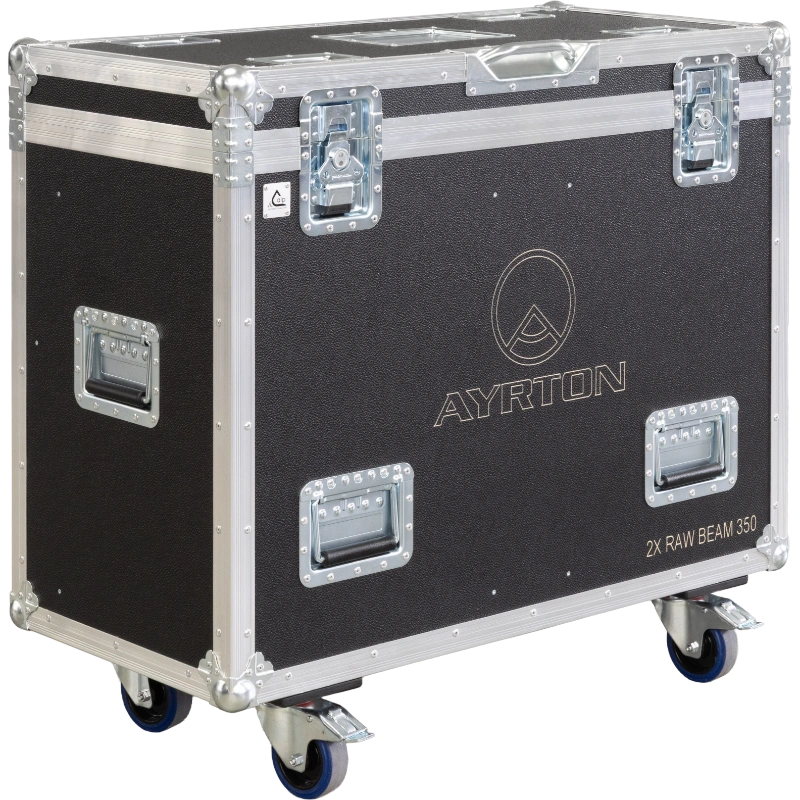

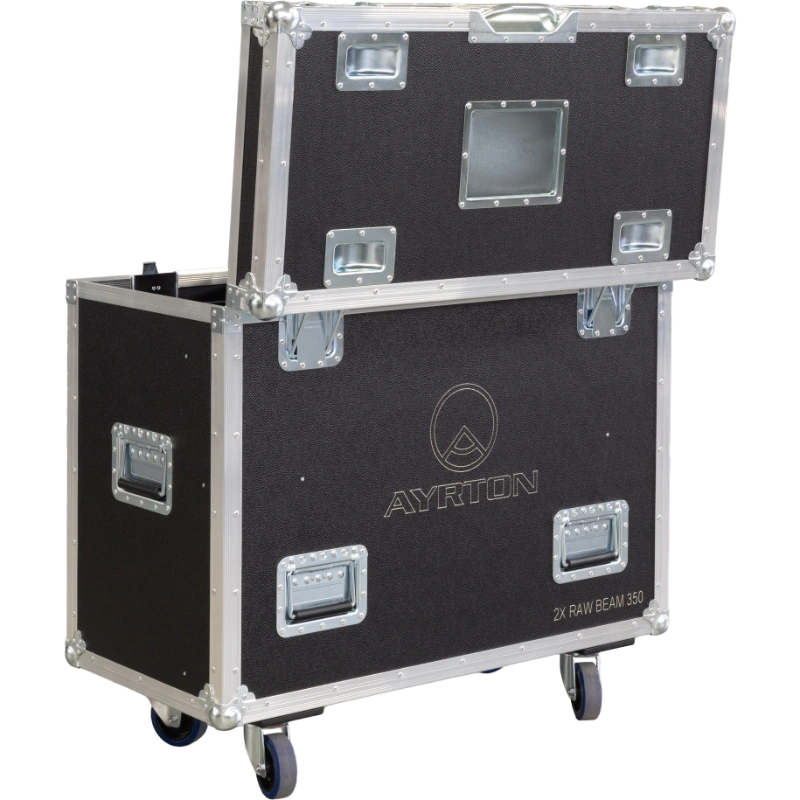

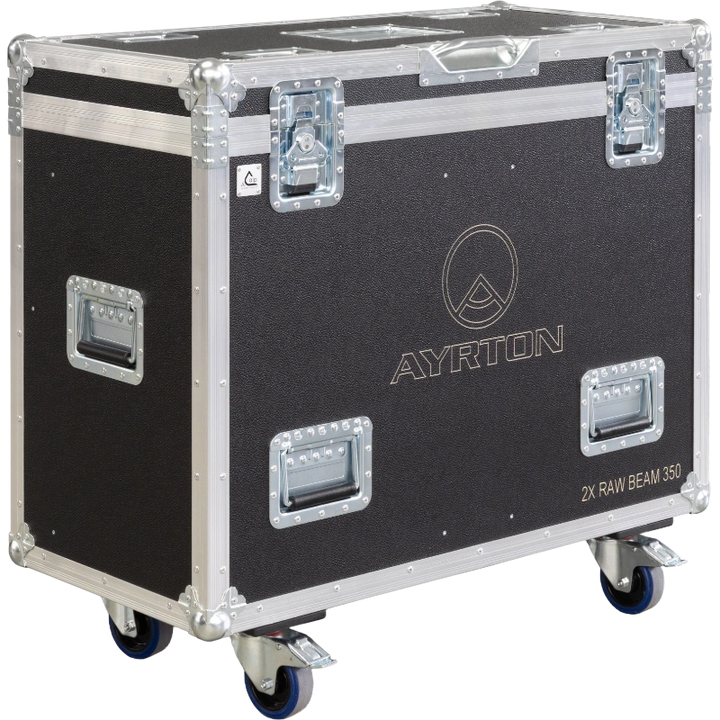

The ALP Flight Case for 2x Ayrton RawBeam 350 is a professional transport flight case designed to protect, organize, and move two Ayrton RawBeam 350 fixtures during storage, rental operations, touring, event logistics, stage setup, and daily technical handling. Built for lighting technicians, audiovisual companies, rental providers, production teams, touring crews, and live event professionals, this flight case provides robust protection for professional moving head equipment.
According to the technical drawing, this flight case is designed for 2x Ayrton RawBeam 350, with internal dimensions of 940 x 440 x 717 mm, approximate weight of 29 kg, and 10mm wall thickness. The drawing also indicates HD Foam, foam and equipment protection, and an official foamshell + Ayrton RawBeam 350 3D model provided by the manufacturer.
Professional Protection for Ayrton RawBeam 350
Designed for 2x Moving Head Fixtures

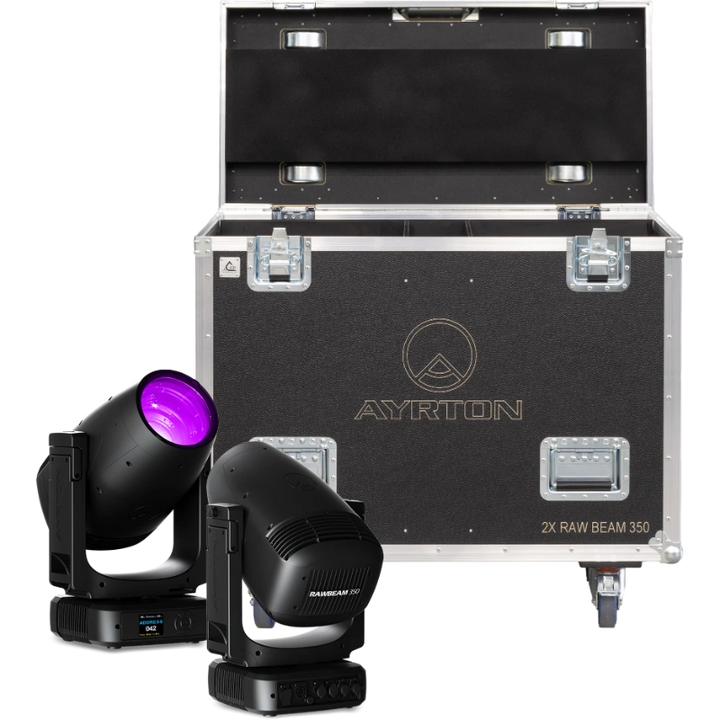

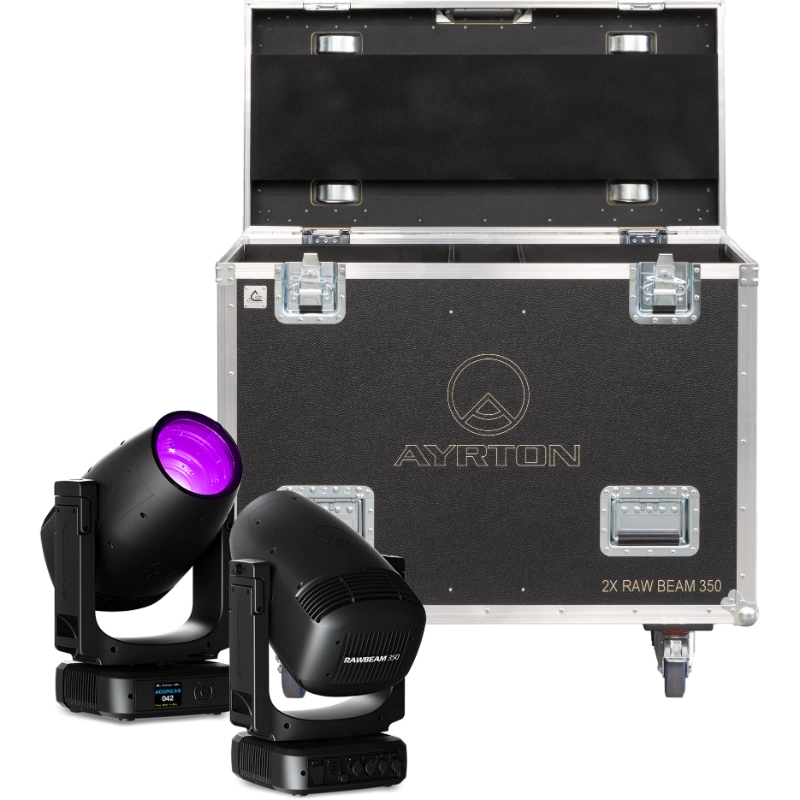

The ALP Flight Case for 2x Ayrton RawBeam 350 is designed to transport two Ayrton RawBeam 350 fixtures in a dedicated protective flight case format.
It is suitable for lighting rental stock, concerts, touring productions, festivals, corporate events, stage lighting setups, exhibitions, broadcast projects, and technical storage.
Strong 10mm Flight Case Construction
Built for Touring, Rental and Production Use
The flight case is built with 10mm wall thickness, providing a rigid protective structure for repeated professional transport and handling.
The case is designed for demanding logistics environments, including warehouse movement, truck loading, venue setup, touring operations, and return-to-stock workflows.

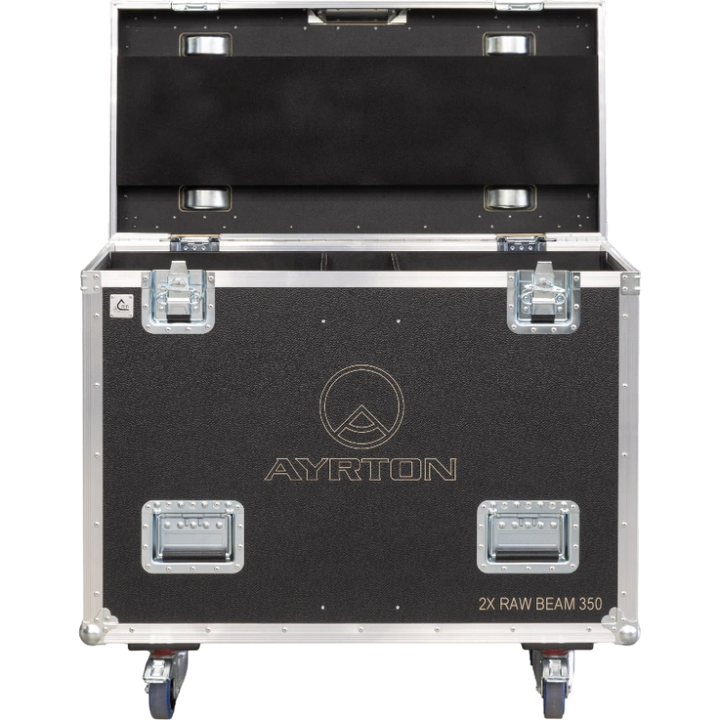

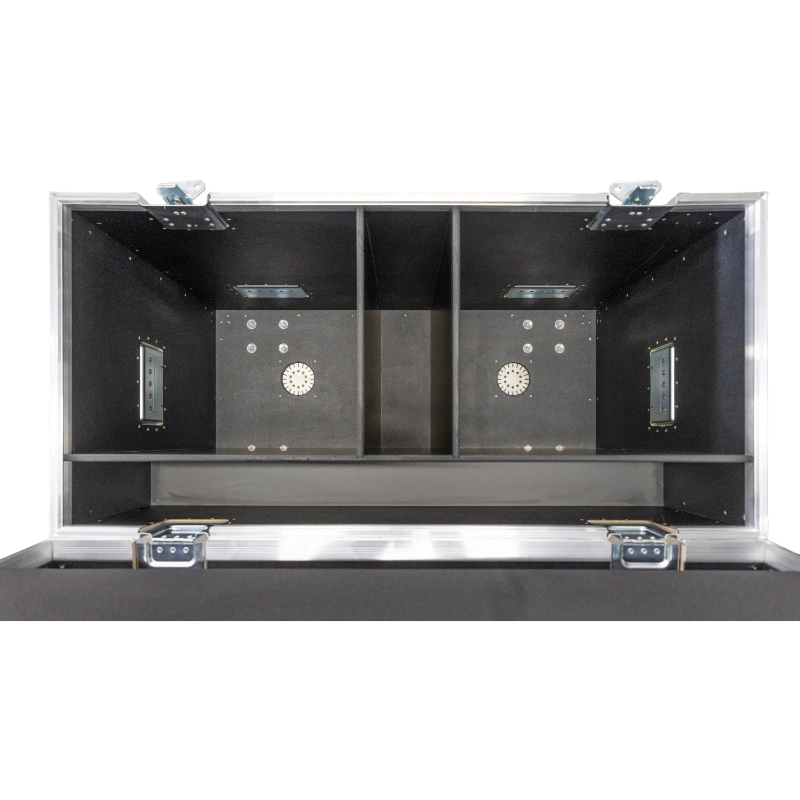

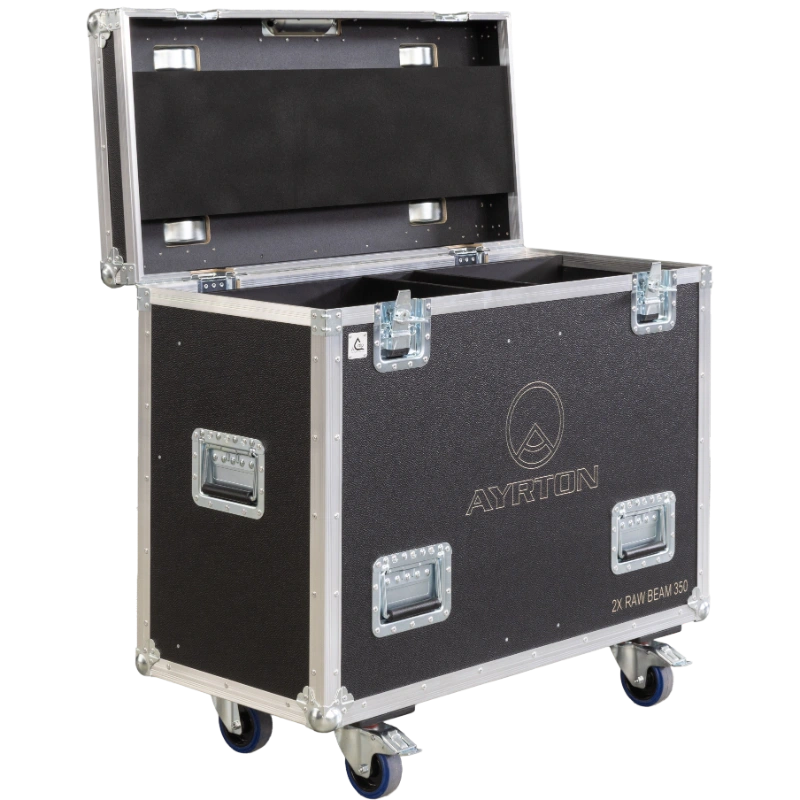

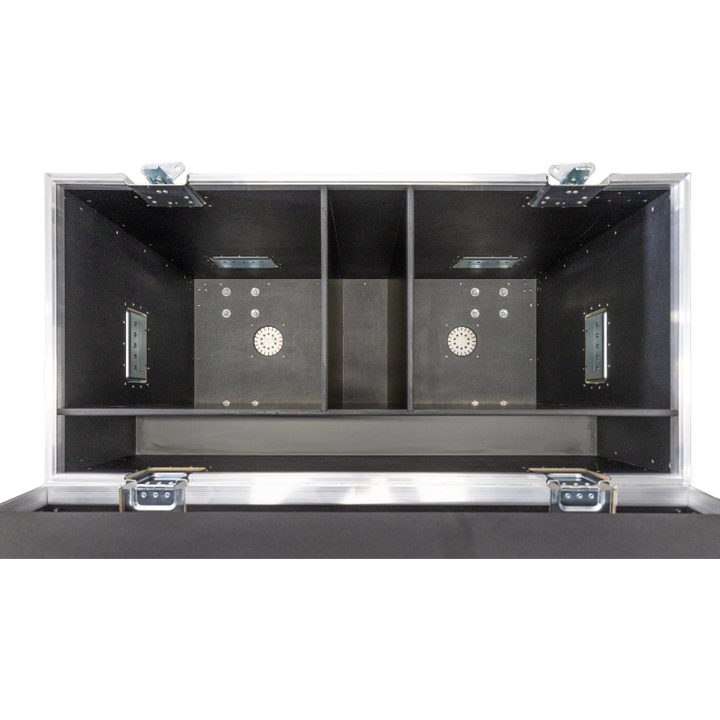

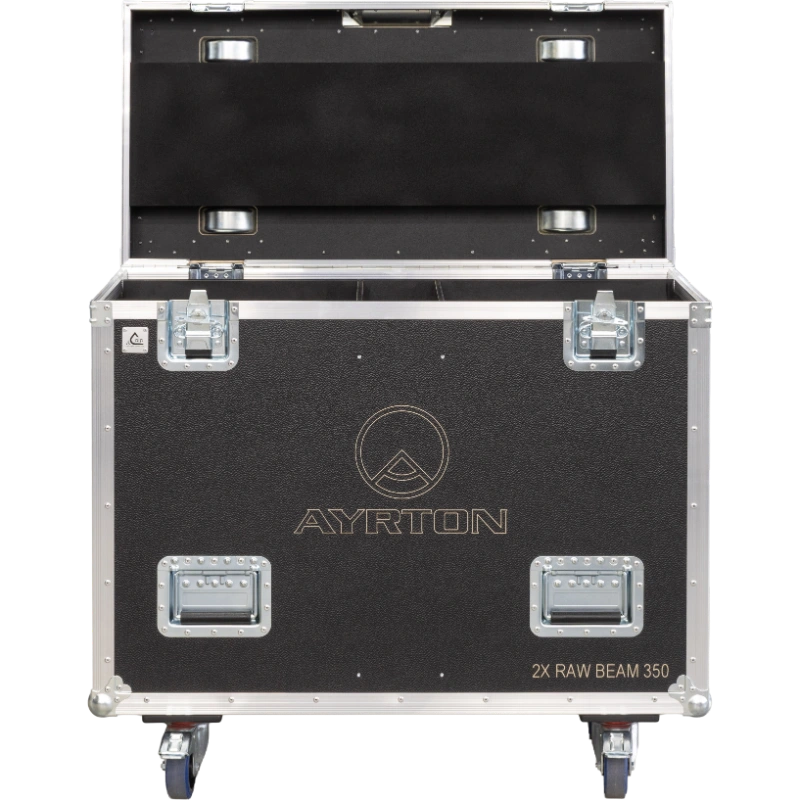

Protective Interior Layout
HD Foam and Foamshell-Based Protection
The internal layout is designed around the official foamshell + Ayrton RawBeam 350 model, helping create a dedicated protective structure for the fixtures.
The design includes HD Foam and dedicated internal separation to keep the two units correctly positioned and protected during transport.

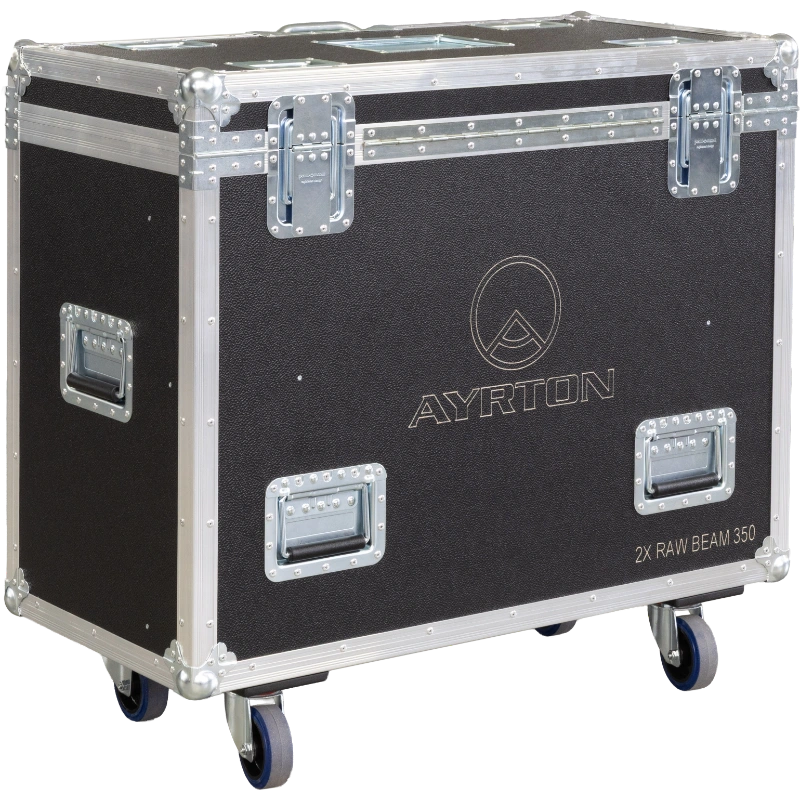

Reinforced Flight Case Hardware
Corners, Handles, Catches and Reinforcements
The hardware list includes 8x three-leg ball corners, 6x large spring handles, 2x Push & Back butterfly catches, 2x lid stay catches with hinge, and 4x angle reinforcements, providing a professional touring-grade hardware configuration.
The case also includes 1x identification plate, 1x recessed label holder, 1x metal corner handle, and 2x drain panels, supporting traceability, handling, and professional transport use.
Mobility and Stacking
Ø100 Wheels and Stackable Curved Wheel Dishes
The case includes 4x Ø100 wheels, with 2 wheels with brake and 2 wheels without brake, improving mobility in warehouses, venues, loading areas, stages, studios, and production environments.
The 4x stackable curved wheel dishes support safer stacking and positioning during transport and storage.
Technical Specifications
| Feature |
Details |
| Reference: |
LMH2P163R |
| Product Type: |
Flight Case for Moving Head Fixtures with Wheels |
| Compatibility: |
2x Ayrton RawBeam 350 |
| Overall Dimensions: |
983 x 483 x 892 mm |
| Internal Dimensions: |
940 x 440 x 717 mm |
| Approx. Weight: |
29 kg |
| Wall Thickness: |
10mm |
| Interior Protection: |
HD Foam + Foamshell-Based Layout |
| Corners: |
8x Three-Leg Ball Corners |
| Handles: |
6x Large Spring Handles + 1x Metal Corner Handle |
| Closures: |
2x Push & Back Butterfly Catches |
| Lid Support: |
2x Lid Stay Catches With Hinge |
| Wheels: |
4x Wheels Ø100, including 2 with brake |
| Stacking: |
4x Stackable Curved Wheel Dishes |
| Reinforcements: |
4x Angle Reinforcements + 2x Hinged Angle Reinforcements |
| Drain Panels: |
2x Drain Panels |
| Identification: |
1x Identification Plate + 1x Recessed Label Holder |
