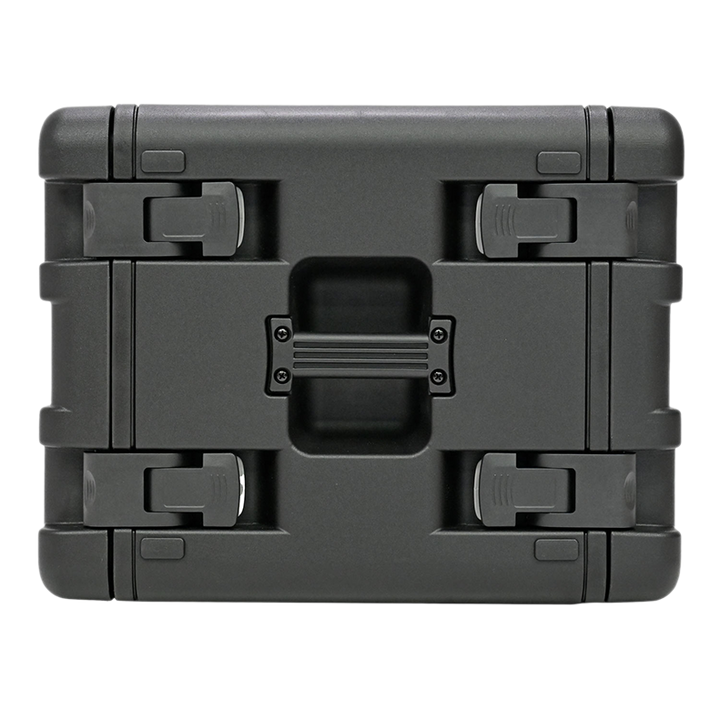

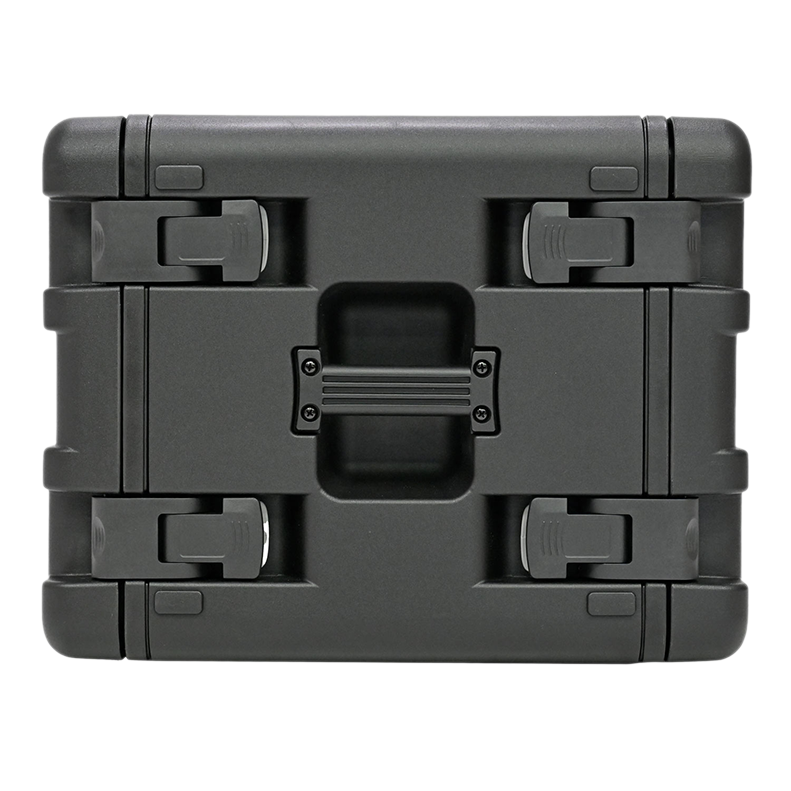

Designed for compact 19-inch rack equipment, the SIN-RIM-S06U28-BK combines a 6U format with a reduced rack depth for applications where full-size rack cases are unnecessary. Its injection-moulded construction makes it suitable for mobile AV systems, rental equipment, control systems, amplifiers, processors, and other rack-mounted electronics.

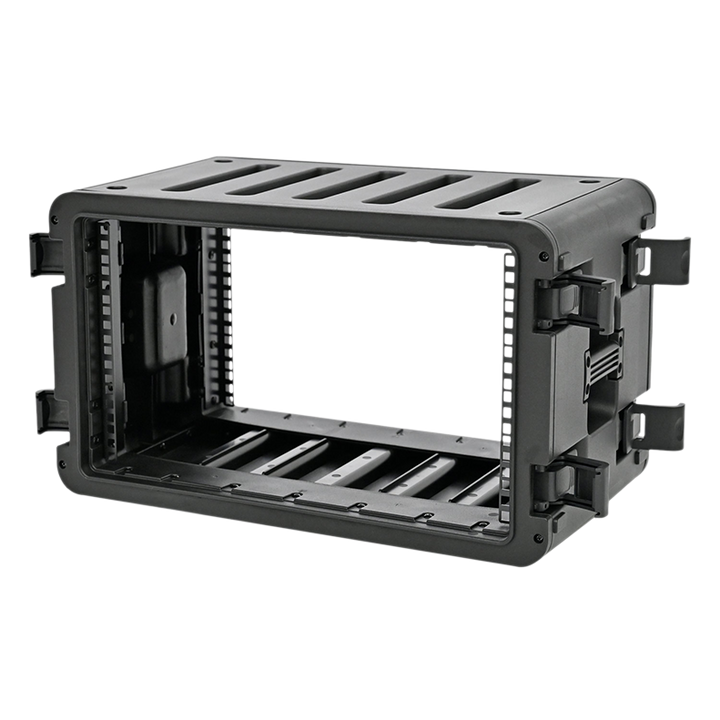

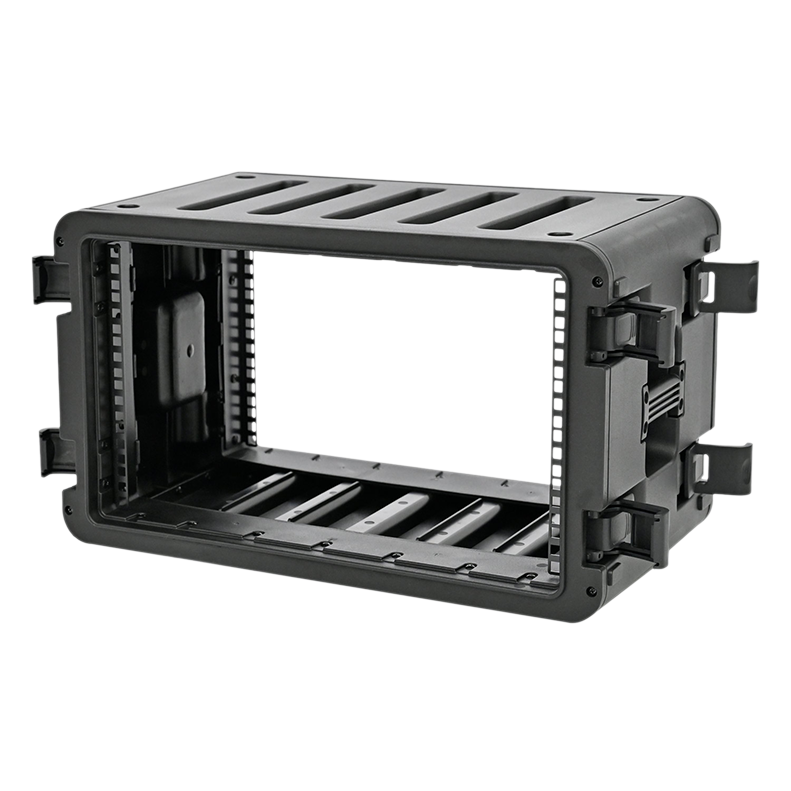

Both the front and rear lids are fully removable, providing direct access to connections and controls. The steel rack rails can be adjusted at the front and rear, with a rail-to-rail distance ranging from 266 to 276 mm and up to 339 mm between the front rack rail and rear lid. This flexibility allows the internal mounting position to be adapted to different equipment configurations.

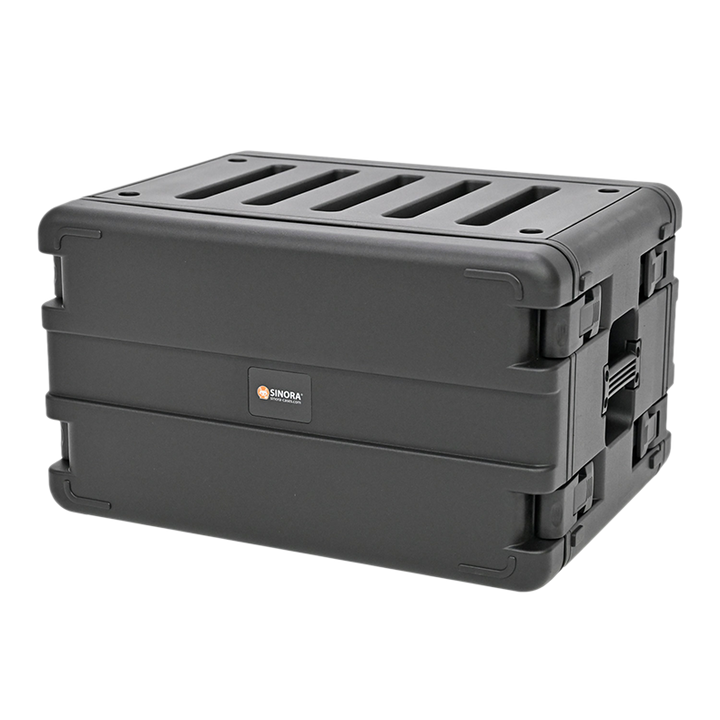

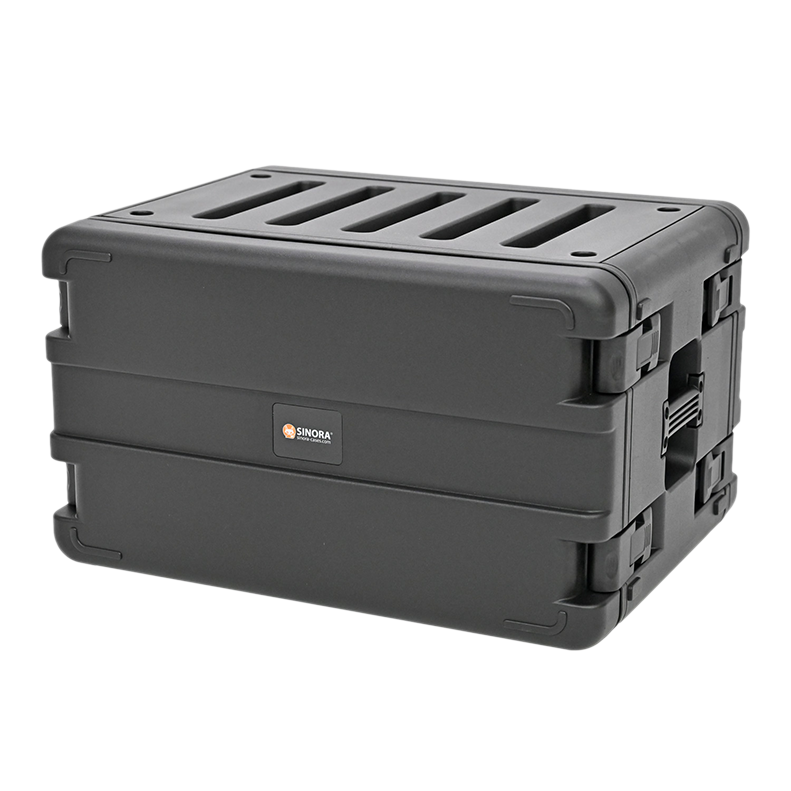

Manufactured from black PP plastic, the rack features sturdy draw latches and a stackable exterior design for easier storage and transport. A 32pcs rack screw set is included. Exterior dimensions are 580 x 350 x 435 mm (W x H x D).
Technical Specifications
| Feature |
Details |
| Reference: |
SIN-RIM-S06U28-BK |
| Product Type: |
19" Hard Shell Short Rack |
| Rack Height: |
6U |
| Material: |
PP Plastic |
| Construction: |
Injection-Moulded |
| Color: |
Black |
| Stackable: |
Yes |
| Front Lid: |
Removable |
| Rear Lid: |
Removable |
| Closures: |
Sturdy Draw Latches |
| Rack Rails: |
Adjustable Steel Rack Rails, Front and Rear |
| Rack Rail to Rack Rail: |
Min. 266 mm / Max. 276 mm |
| Front Rack Rail to Rear Lid: |
Max. 339 mm |
| Front Lid to Front Rack Rail: |
Min. 63 mm |
| Rack Rail to Closing Edge: |
Max. 30 mm |
| Included Accessories: |
32pcs Rack Screw Set |
| Exterior Dimensions: |
580 x 350 x 435 mm (W x H x D) |
