ALP FLIGHT CASES 19" SINORA 3U Ultra Short Rack

The SIN-RIM-S03U19-BK is a compact 3U Ultra Short Rack designed for professional 19-inch equipment where minimum rack depth is a priority. Its reduced format is particularly useful for shallow processors, interfaces, control systems, and mobile AV setups where a conventional full-depth rack would add unnecessary volume.

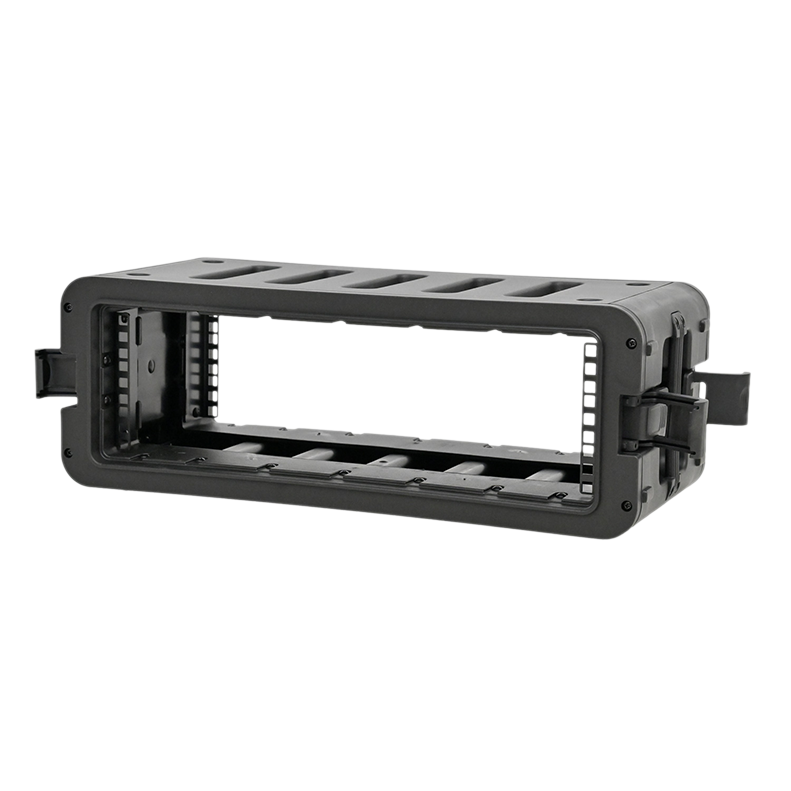

Both the front and rear lids are removable, giving direct access to controls and connections. Adjustable steel rack rails are fitted at the front and rear, with a rail-to-rail distance adjustable from 190 to 200 mm and up to 265 mm between the front rack rail and rear lid.

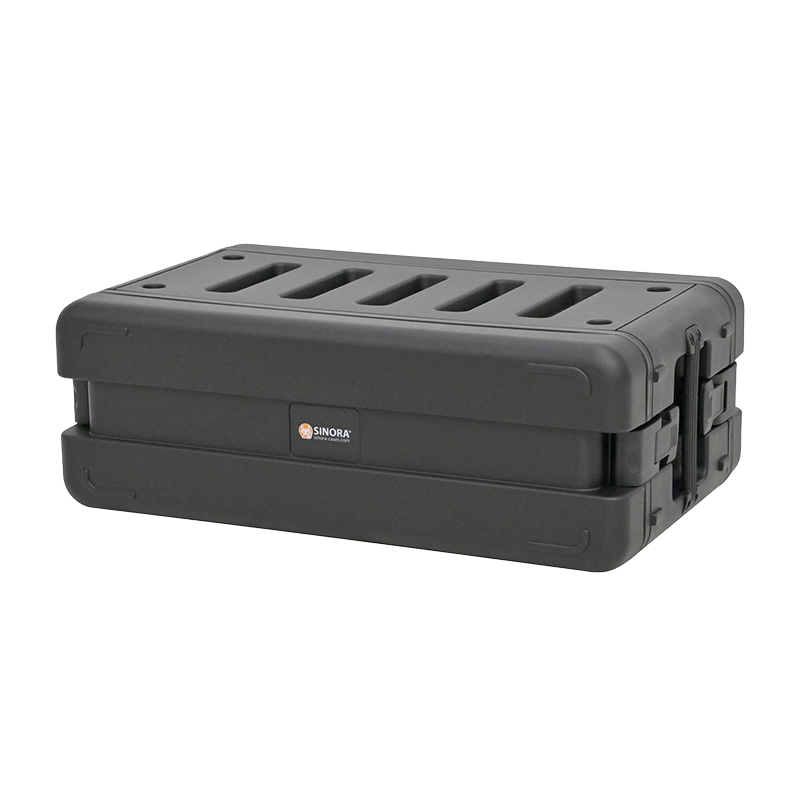

The shell is manufactured from black injection-moulded PP plastic and features a stackable design with sturdy draw latches for transport and storage. A 12pcs rack screw set is included. Exterior dimensions are 580 x 215 x 355 mm (W x H x D).

Technical Specifications
